| Part number: | SN74LV10ADGVR |
| Description: | IC GATE NAND 3CH 3-INP 14TVSOP |
| Manufacturer | Texas Instruments |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Texas Instruments" |

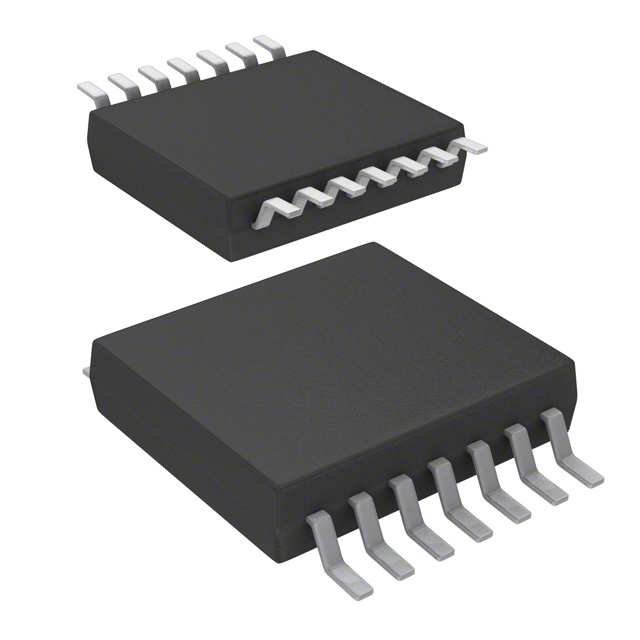

| Package / Case | 14-TFSOP (0.173", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Logic Type | NAND Gate |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Output High, Low | 12mA, 12mA |
| Number of Inputs | 3 |
| Supplier Device Package | 14-TVSOP |
| Input Logic Level - High | 1.5V |
| Input Logic Level - Low | 0.5V |
| Max Propagation Delay @ V, Max CL | 7.9ns @ 5V, 50pF |
| Number of Circuits | 3 |
| Current - Quiescent (Max) | 20 µA |
|
