| Part number: | CD74AC20E |
| Description: | IC GATE NAND 2CH 4-INP 14DIP |
| Manufacturer | Texas Instruments |
| Encapsulation | Tube |
| Quantity | 25 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Texas Instruments" |

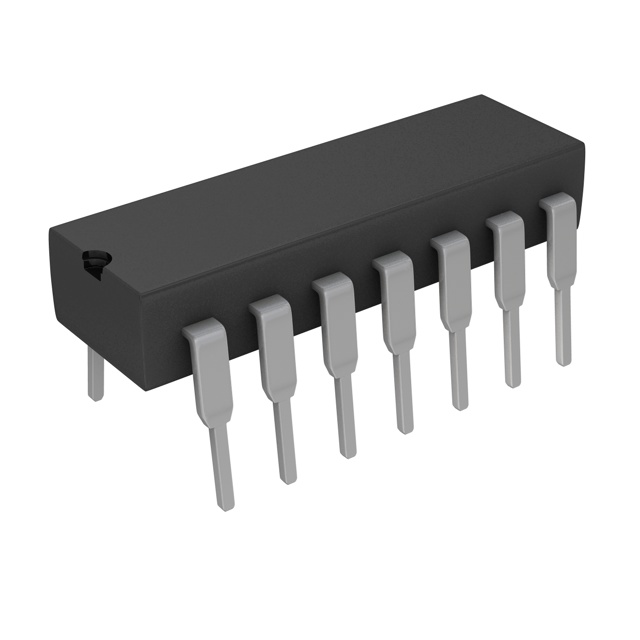

| Package / Case | 14-DIP (0.300", 7.62mm) |
| Mounting Type | Through Hole |
| Logic Type | NAND Gate |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 1.5V ~ 5.5V |
| Current - Output High, Low | 24mA, 24mA |
| Number of Inputs | 4 |
| Supplier Device Package | 14-PDIP |
| Input Logic Level - High | 1.2V ~ 3.85V |
| Input Logic Level - Low | 0.3V ~ 1.65V |
| Max Propagation Delay @ V, Max CL | 12.2ns @ 5V, 50pF |
| Number of Circuits | 2 |
| Current - Quiescent (Max) | 4 µA |
|
