| Part number: | RNS1C181MDN1KX |

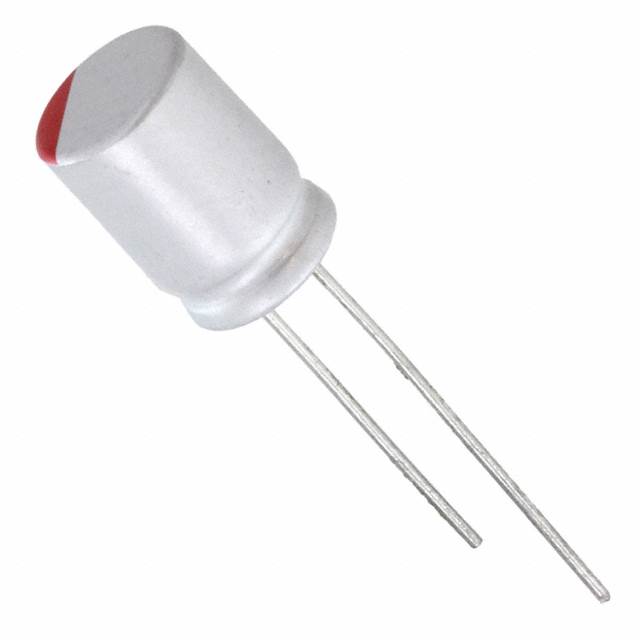

| Description: | CAP ALUM POLY 180UF 20% 16V T/H |
| Manufacturer | Nichicon |
| Encapsulation | Cut Tape (CT) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Nichicon" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Mounting Type | Through Hole |
| Type | Polymer |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.138" (3.50mm) |
| ESR (Equivalent Series Resistance) | 16mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Capacitance | 180 µF |
| Voltage - Rated | 16 V |
| Ripple Current @ Low Frequency | 470 mA @ 120 Hz |
| Ripple Current @ High Frequency | 4.7 A @ 100 kHz |
|
