| Part number: | ADUM7642ARQZ-RL7 |
| Description: | DGTL ISO 1000VRMS 6CH GP 20QSOP |
| Manufacturer | Linear Technology (Analog Devices, Inc.) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Linear Technology (Analog Devices, Inc.)" |

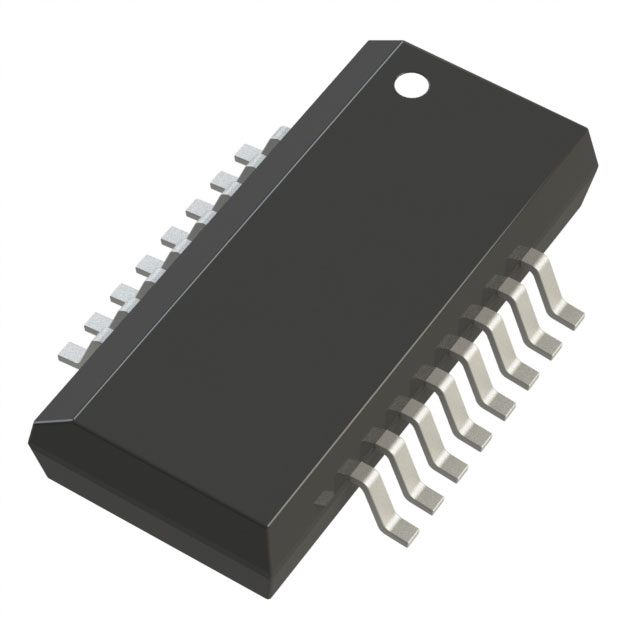

| Package / Case | 20-SSOP (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Type | General Purpose |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 3V ~ 5.5V |
| Data Rate | 1Mbps |
| Technology | Magnetic Coupling |
| Voltage - Isolation | 1000Vrms |
| Inputs - Side 1/Side 2 | 4/2 |
| Supplier Device Package | 20-QSOP |
| Rise / Fall Time (Typ) | 2ns, 2ns |
| Common Mode Transient Immunity (Min) | 15kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Isolated Power | No |
| Channel Type | Unidirectional |
| Pulse Width Distortion (Max) | 25ns |
| Number of Channels | 6 |
|
