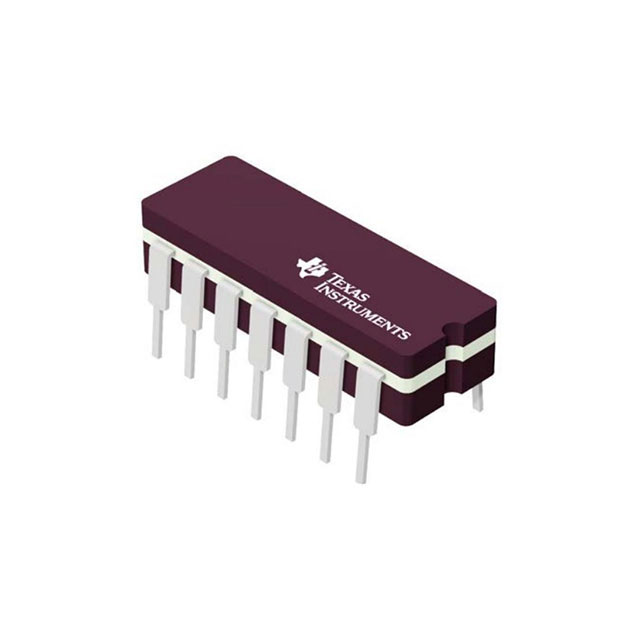

| Part number: | SN74LS132N |
| Description: | IC GATE NAND 4CH 2-INP 14DIP |
| Manufacturer | Texas Instruments |
| Encapsulation | Tube |
| Quantity | 25 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Texas Instruments" |
| Features | Schmitt Trigger |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Mounting Type | Through Hole |
| Logic Type | NAND Gate |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Output High, Low | 400µA, 8mA |
| Number of Inputs | 2 |
| Supplier Device Package | 14-PDIP |
| Input Logic Level - High | 1.9V |
| Input Logic Level - Low | 0.5V |
| Max Propagation Delay @ V, Max CL | 22ns @ 5V, 15pF |
| Number of Circuits | 4 |
| Current - Quiescent (Max) | 11 mA |
|
