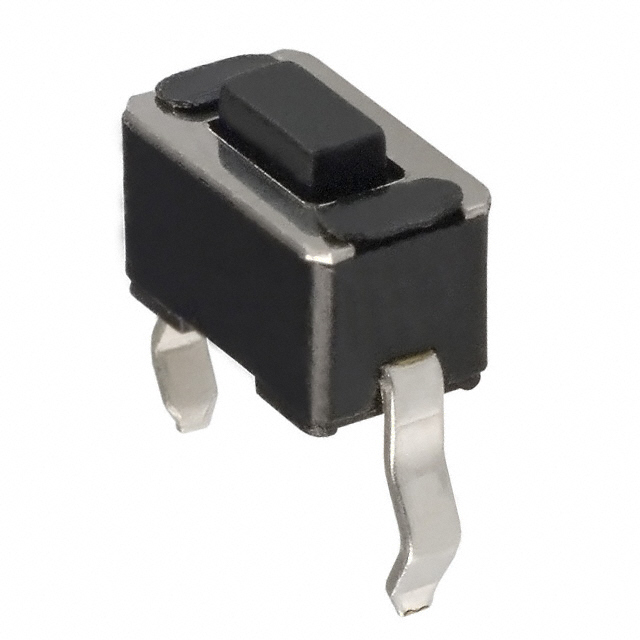

| Part number: | TL1107AF180WQ |
| Description: | SWITCH TACTILE SPST-NO 0.05A 12V |
| Manufacturer | E-Switch |
| Encapsulation | Bulk |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "E-Switch" |
| Features | Tactile Feedback |
| Mounting Type | Through Hole |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Operating Temperature | -20°C ~ 70°C |
| Termination Style | PC Pin |
| Illumination | Non-Illuminated |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Type | Rectangular Button |
| Operating Force | 180gf |
| Outline | 6.00mm x 3.50mm |
| Actuator Height off PCB, Vertical | 4.30mm |
| Actuator Orientation | Top Actuated |
|
