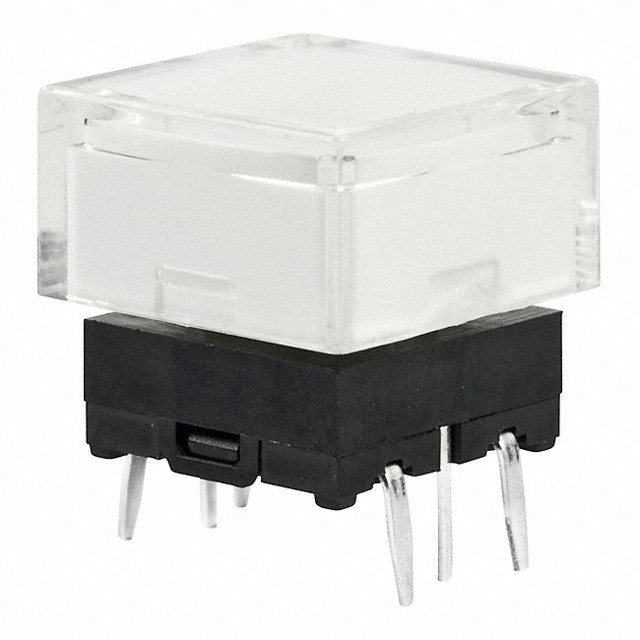

| Part number: | JB15LPE-JB |
| Description: | SWITCH TACTILE SPST-NO 0.05A 24V |
| Manufacturer | NKK Switches |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "NKK Switches" |
| Features | Process Sealed |
| Mounting Type | Through Hole |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Operating Temperature | -25°C ~ 70°C |
| Termination Style | PC Pin |
| Illumination Type, Color | LED, Yellow |
| Illumination Voltage (Nominal) | 2 VDC |
| Illumination | Illuminated |
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| Actuator Type | Square Button |
| Operating Force | 176gf |
| Outline | 10.00mm x 10.00mm |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Actuator Height off PCB, Vertical | 11.20mm |
| Actuator Orientation | Top Actuated |
|
