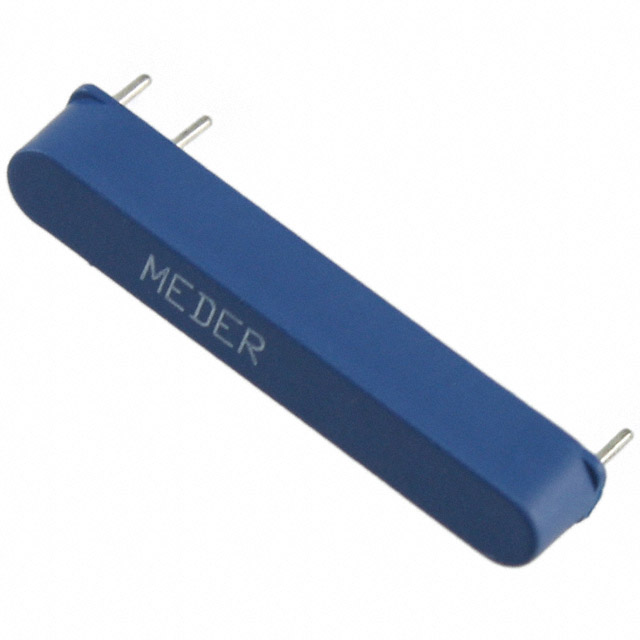

| Part number: | MK06-8-H |
| Description: | SWITCH REED SPDT 500MA 175V |
| Manufacturer | Standex Electronics |
| Encapsulation | Bulk |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Standex Electronics" |
| Mounting Type | Through Hole |
| Circuit | SPDT |
| Type | Molded Body Reed |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | PC Pin |
| Length - Overall | 0.879" (22.33mm) |
| Power - Rated | 10W |
| Height Above Board | 0.165" (4.20mm) |
| Current - Switching | 500mA (AC/DC) |
| Voltage - Switching DC | 175 V |
| Operate Time | 0.7 ms |
| Release Time | 1.5 ms |
| Size - Body | 0.879" L x 0.130" W x 0.165" H (22.33mm x 3.30mm x 4.20mm) |
| Operate Range | 15 ~ 20AT |
| Current - Carry | 1A (AC/DC) |
| Voltage - Switching AC | 175 V |
| Capacitance | 1.5 pF |
|
