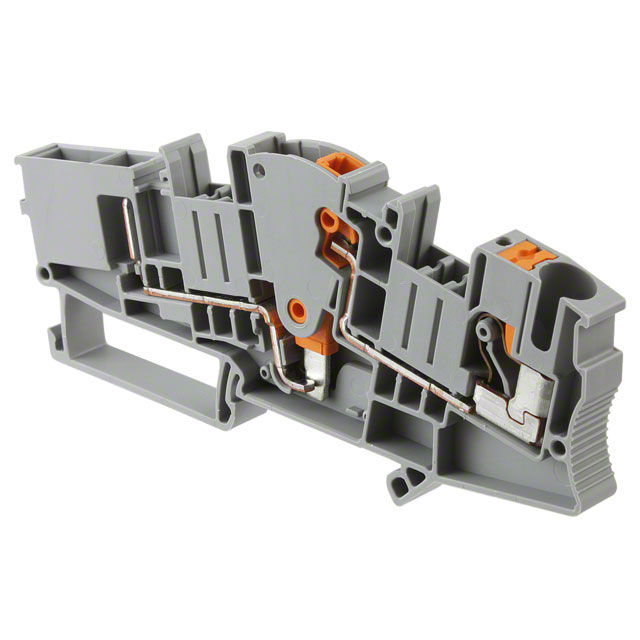

| Part number: | 3212300 |
| Description: | TERM BLK PLUG 2POS 8.2MM GRAY |
| Manufacturer | Phoenix Contact |
| Encapsulation | Bulk |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Phoenix Contact" |
| Features | Disconnect Switch, Lever |
| Mounting Type | DIN Rail |
| Length | 4.524" (114.90mm) |
| Type | Plug Connection |
| Termination Style | Plug Receptacles, Push In, Spring |
| Material - Insulation | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Terminal - Width | 8.2mm |
| Wire Gauge or Range - AWG | 8-20 AWG |
| Wire Gauge or Range - mm² | 0.5-10mm² |
| Height (Max) | 2.248" (57.10mm) |
| Housing Color | Gray |
| Stripping Length | 12mm |
| Current - UL | 30 A |
| Current - IEC | 30 A |
| Voltage - IEC | 500 V |
| Voltage - UL | 300 V |
| Number of Positions | 2 |
|
