| Part number: | ADUM4470ARIZ |
| Description: | DGTL ISO 5000VRMS 4CH GP 20SOIC |
| Manufacturer | Linear Technology (Analog Devices, Inc.) |
| Encapsulation | Tube |
| Quantity | 31 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Linear Technology (Analog Devices, Inc.)" |

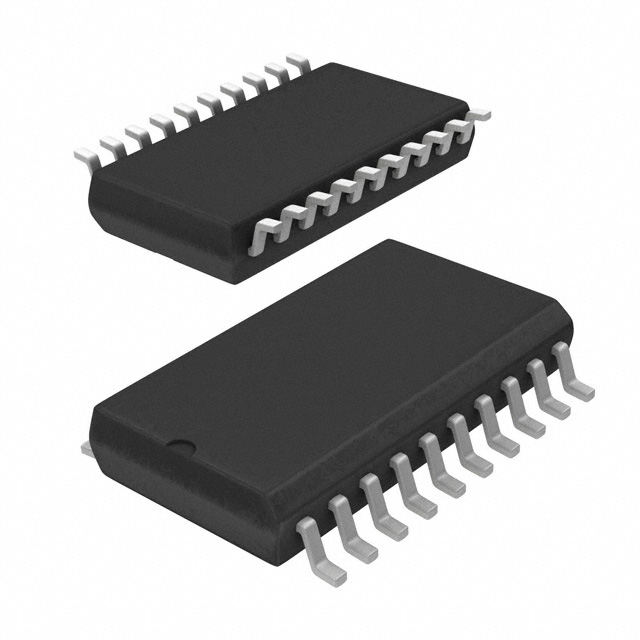

| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Type | General Purpose |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 3V ~ 3.6V, 4.5V ~ 5.5V |
| Data Rate | 1Mbps |
| Technology | Magnetic Coupling |
| Voltage - Isolation | 5000Vrms |
| Inputs - Side 1/Side 2 | 4/0 |
| Supplier Device Package | 20-SOIC-IC |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Isolated Power | Yes |
| Channel Type | Unidirectional |
| Pulse Width Distortion (Max) | 40ns |
| Number of Channels | 4 |
|
