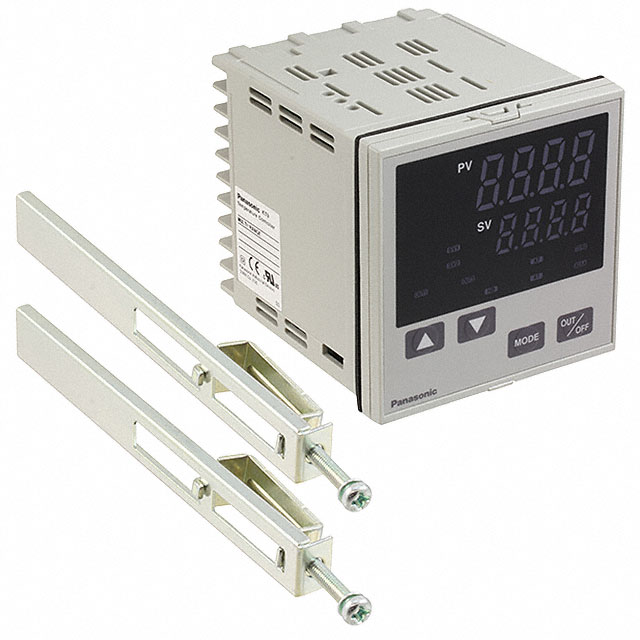

| Part number: | AKT9211201 |
| Description: | CONTROL TEMP/PROC RELAY OUT 24V |
| Manufacturer | Panasonic Industrial Automation Sales |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Industrial Automation Sales" |
| Features | Heater Fault Detection |
| Display Type | LED - Dual Color Characters |
| Output Type | Relay (3) |
| Mounting Type | Panel Mount |
| Type | Process, Temperature Controller (RTD, Type B, C, E, J, K, N, PLII, R, S, T) |
| Weight | 0.816 lb (370.13 g) |
| Operating Temperature | 0°C ~ 50°C |
| Termination Style | Screw Terminal |
| Voltage - Supply | 24VAC/DC |
| Ingress Protection | IP66 - Dust Tight, Water Resistant |
| Panel Cutout Dimensions | Square - 92.00mm x 92.00mm |
| Input Range | -200°C ~ 2315°C, 0 ~ 20mA, 0 ~ 10VDC |
| Display Characters - Height | 0.710" (18.00mm), 0.520" (13.20mm) |
| Control Method | On/Off, Proportional (PID) |
| Number of Characters Per Row | 4, 4 |
|
