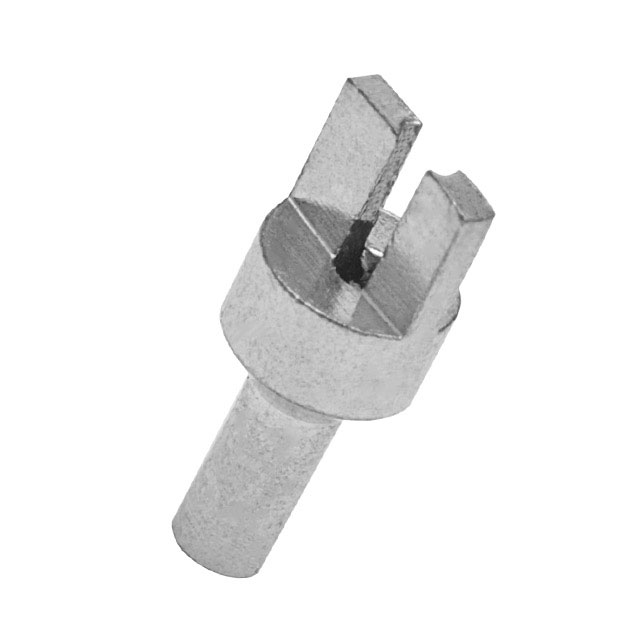

| Part number: | H9066-01 |
| Description: | TERM TURRET HOLLOW L=4.75MM TIN |
| Manufacturer | Harwin |
| Encapsulation | Bulk |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Harwin" |
| Contact Finish | Tin |
| Mounting Type | Through Hole |
| Insulation | Non-Insulated |
| Board Thickness | 0.063" (1.60mm) |
| Terminal Type | Single End, Fork, Hollow |
| Flange Diameter | 0.125" (3.18mm) |
| Length - Overall | 0.281" (7.14mm) |
| Termination | Swage |
| Length - Above Board | 0.187" (4.75mm) |
| Mounting Hole Diameter | 0.060" ~ 0.063" (1.52mm ~ 1.60mm) |
| Contact Material | Brass Alloy |
| Number of Turrets | Single |
| Length - Below Flange | 0.094" (2.39mm) |
| Staking Side OD | 0.059" ~ 0.060" (1.50mm ~ 1.52mm) |
| Staking Side ID | 0.042" ~ 0.043" (1.07mm ~ 1.09mm) |
|
