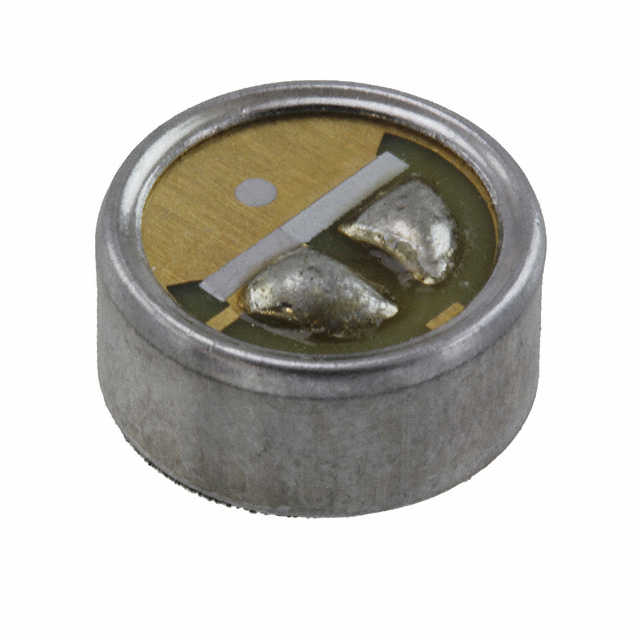

| Part number: | EM-9745 |
| Description: | MIC COND ANLG OMNI -46DB 0.382"D |
| Manufacturer | Soberton, Inc. |
| Encapsulation | Tray |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Soberton, Inc." |
| Output Type | Analog |
| Size / Dimension | 0.382" Dia (9.70mm) |
| Sensitivity | -46dB ±2dB @ 94dB SPL |
| Shape | Circular |
| Type | Electret Condenser |
| S/N Ratio | 58dB |
| Termination | Solder Pads |
| Direction | Omnidirectional |
| Port Location | Top |
| Height (Max) | 0.177" (4.50mm) |
| Voltage - Rated | 4.5 V |
| Impedance | 2.2 kOhms |
| Current - Supply | 500 µA |
| Voltage Range | 1 V ~ 10 V |
| Frequency Range | 100 Hz ~ 10 kHz |
|
