| Part number: | 1173810000 |

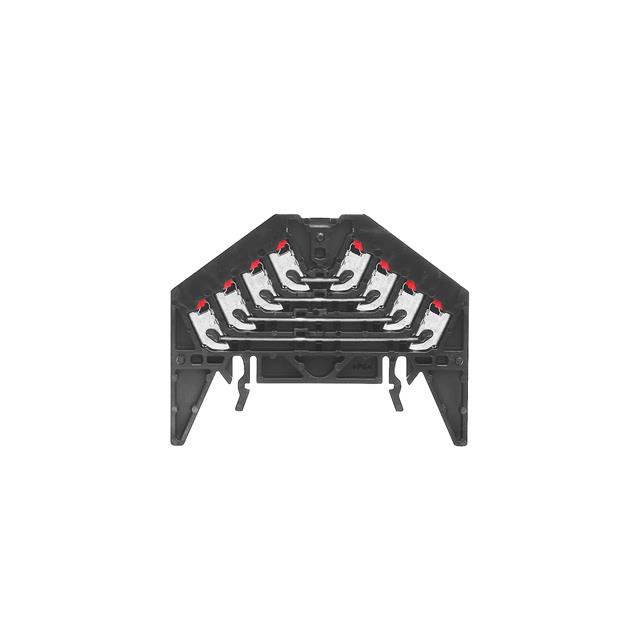

| Description: | TERM BLK DISTRIB 16POS 9.2MM BLK |
| Manufacturer | Weidmuller |
| Encapsulation | Bulk |
| Quantity | 20 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Weidmuller" |
| Mounting Type | DIN Rail |
| Length | 2.756" (70.00mm) |
| Type | Signal Distribution |
| Operating Temperature | -25°C ~ 70°C |
| Termination Style | Push In, Spring |
| Material - Insulation | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 4 |
| Terminal - Width | 9.2mm |
| Wire Gauge or Range - AWG | 16 AWG |
| Wire Gauge or Range - mm² | 1.5mm² |
| Height (Max) | 2.146" (54.50mm) |
| Housing Color | Black |
| Stripping Length | 10mm |
| Current - UL | 10 A |
| Current - IEC | 10 A |
| Voltage - IEC | 250 V |
| Voltage - UL | 300 V |
| Number of Positions | 16 |
|
