| Part number: | SW GP501/20-25 AT |

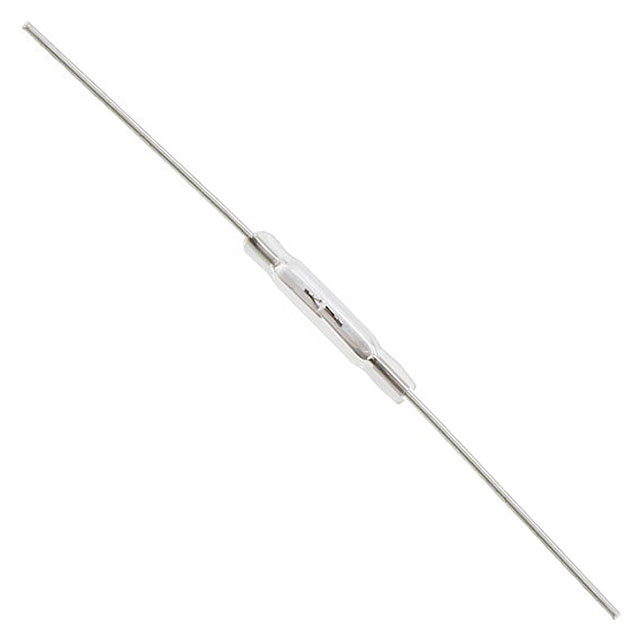

| Description: | SWITCH REED SPST-NO 500MA 200V |
| Manufacturer | Standex Electronics |
| Encapsulation | Bulk |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Standex Electronics" |
| Mounting Type | Through Hole |
| Circuit | SPST-NO |
| Type | Glass Body Reed |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Axial |
| Length - Overall | 2.126" (54.00mm) |
| Power - Rated | 10W |
| Current - Switching | 500mA (AC/DC) |
| Voltage - Switching DC | 200 V |
| Operate Time | 0.5 ms |
| Release Time | 0.1 ms |
| Size - Body | 0.091" Dia x 0.500" L (2.30mm x 12.70mm) |
| Operate Range | 7 ~ 30AT |
| Release Range | 4 ~ 9AT |
| Current - Carry | 1A (AC/DC) |
| Voltage - Switching AC | 200 V |
| Capacitance | 0.3 pF |
|
