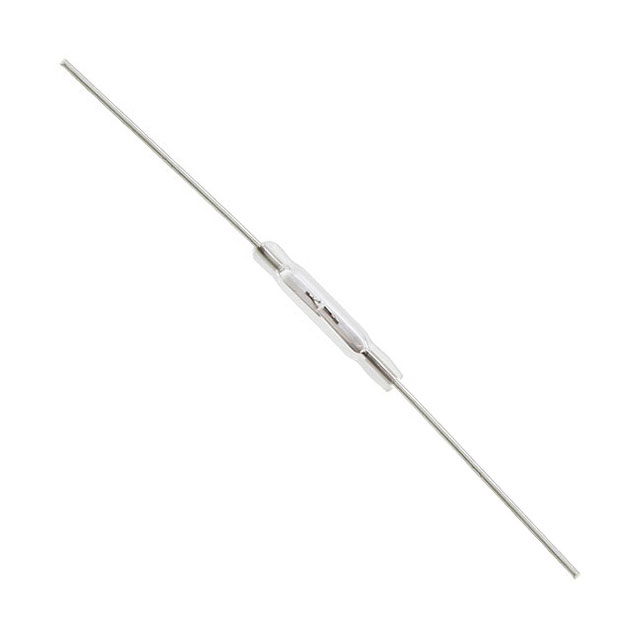

| Part number: | SW GP560/10-15 AT |
| Description: | SWITCH REED SPST-NO 1A 125V |
| Manufacturer | Standex Electronics |
| Encapsulation | Bulk |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Standex Electronics" |
| Mounting Type | Through Hole |
| Circuit | SPST-NO |
| Type | Glass Body Reed |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Axial |
| Length - Overall | 2.126" (54.00mm) |
| Power - Rated | 10VA |
| Current - Switching | 1A (AC/DC) |
| Voltage - Switching DC | 100 V |
| Operate Time | 0.6 ms |
| Release Time | 0.1 ms |
| Size - Body | 0.091" Dia x 0.559" L (2.30mm x 14.20mm) |
| Operate Range | 10 ~ 50AT |
| Release Range | 6 ~ 21AT |
| Current - Carry | 1.5A (AC/DC) |
| Voltage - Switching AC | 125 V |
| Capacitance | 0.2 pF |
|
