| Part number: | APXS100ARA121MF61G |

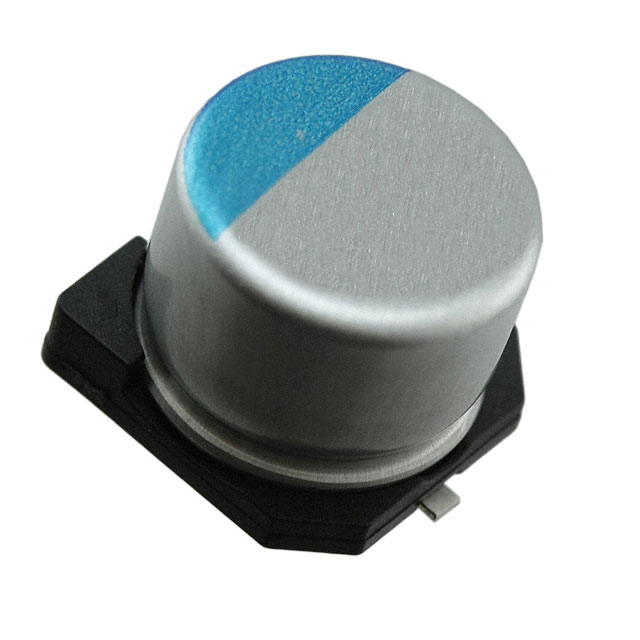

| Description: | CAP ALUM POLY 120UF 20% 10V SMD |
| Manufacturer | United Chemi-Con |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "United Chemi-Con" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Mounting Type | Surface Mount |
| Type | Polymer |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| ESR (Equivalent Series Resistance) | 27mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Capacitance | 120 µF |
| Voltage - Rated | 10 V |
| Ripple Current @ High Frequency | 2.32 A @ 100 kHz |
|
