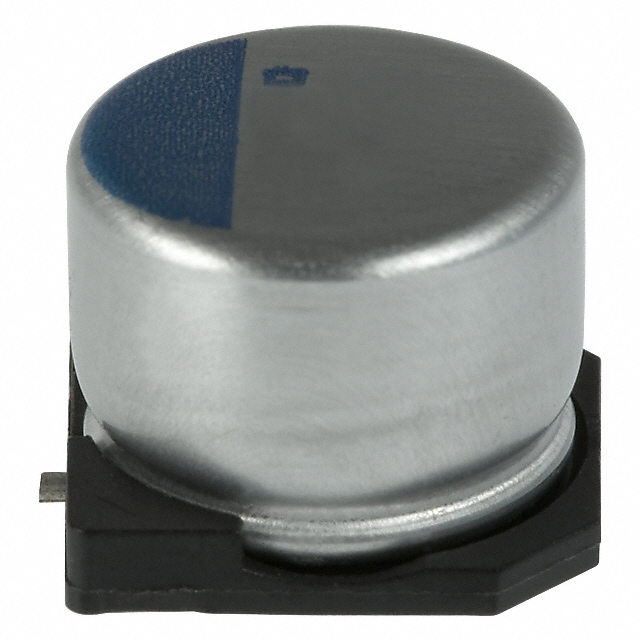

| Part number: | APXA160ARA101MJ80G |
| Description: | CAP ALUM POLY 100UF 20% 16V SMD |
| Manufacturer | United Chemi-Con |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "United Chemi-Con" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Mounting Type | Surface Mount |
| Type | Polymer |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| Lifetime @ Temp. | 15000 Hrs @ 105°C |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Capacitance | 100 µF |
| Voltage - Rated | 16 V |
| Ripple Current @ High Frequency | 2.67 A @ 100 kHz |
|
