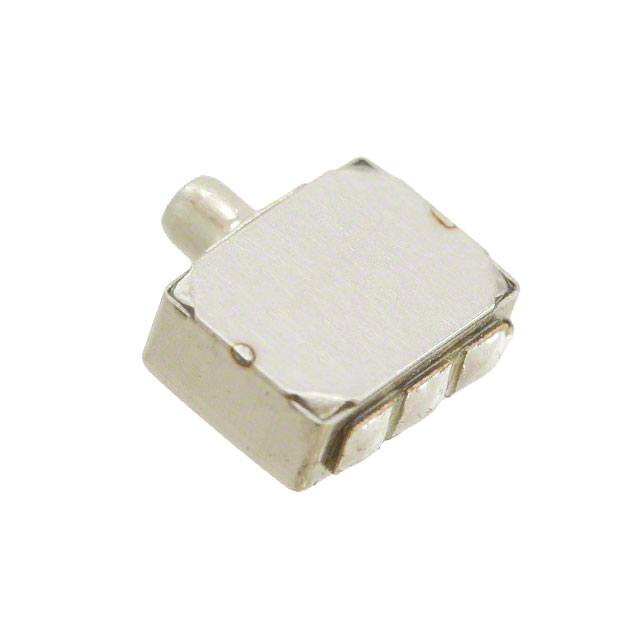

| Part number: | EA-23006-A66 |
| Description: | MIC COND ANALOG OMNI -60DB |
| Manufacturer | Knowles |
| Encapsulation | Bulk |
| Quantity | 25 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Knowles" |
| Output Type | Analog |
| Size / Dimension | 0.219" L x 0.157" W (5.56mm x 3.99mm) |
| Sensitivity | -60dB ±4dB @ 74dB SPL |
| Shape | Rectangular |
| Type | Electret Condenser |
| Termination | Solder Pads |
| Direction | Omnidirectional |
| Port Location | Side |
| Height (Max) | 0.089" (2.26mm) |
| Voltage - Rated | 1.3 V |
| Impedance | 3.5 kOhms |
| Current - Supply | 50 µA |
| Frequency Range | 100 Hz ~ 7.9 kHz |
|
