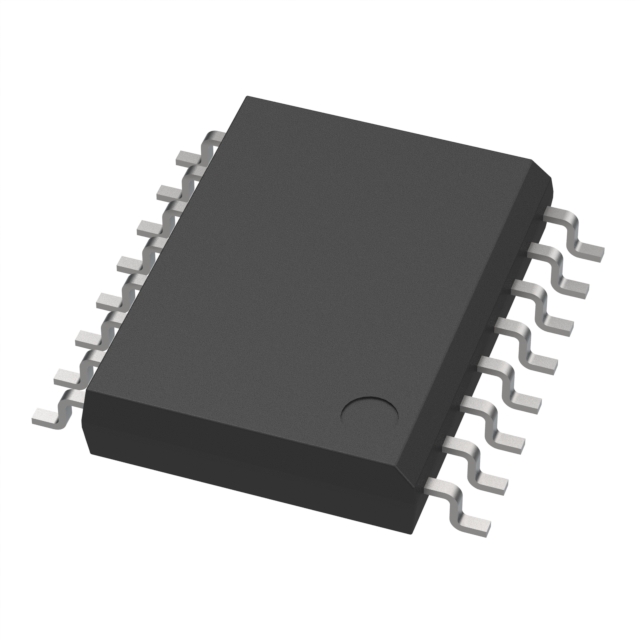

| Part number: | SI8440BB-D-ISR |
| Description: | DGTL ISO 2500VRMS 4CH GP 16SOIC |
| Manufacturer | Skyworks Solutions, Inc. |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1250 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Skyworks Solutions, Inc." |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 2.7V ~ 5.5V |
| Data Rate | 150Mbps |
| Technology | Capacitive Coupling |
| Voltage - Isolation | 2500Vrms |
| Inputs - Side 1/Side 2 | 4/0 |
| Supplier Device Package | 16-SOIC |
| Rise / Fall Time (Typ) | 3.8ns, 2.8ns |
| Common Mode Transient Immunity (Min) | 25kV/µs (Typ) |
| Propagation Delay tpLH / tpHL (Max) | 9.5ns, 9.5ns |
| Isolated Power | No |
| Channel Type | Unidirectional |
| Pulse Width Distortion (Max) | 2.5ns |
| Number of Channels | 4 |
|
