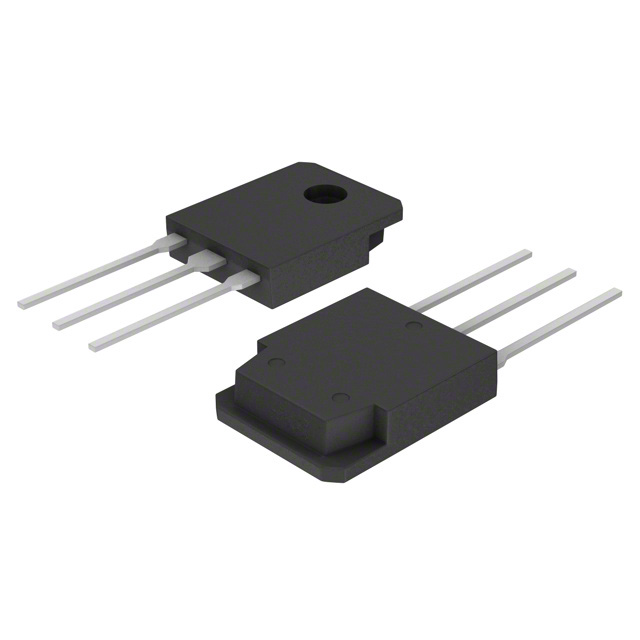

| Part number: | IXTH13N110 |
| Description: | MOSFET N-CH 1100V 13A TO247 |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 13A (Tc) |
| Rds On (Max) @ Id, Vgs | 920mOhm @ 500mA, 10V |
| Power Dissipation (Max) | 360W (Tc) |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA |
| Supplier Device Package | TO-247 (IXTH) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 1100 V |
| Gate Charge (Qg) (Max) @ Vgs | 195 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 5650 pF @ 25 V |
|
