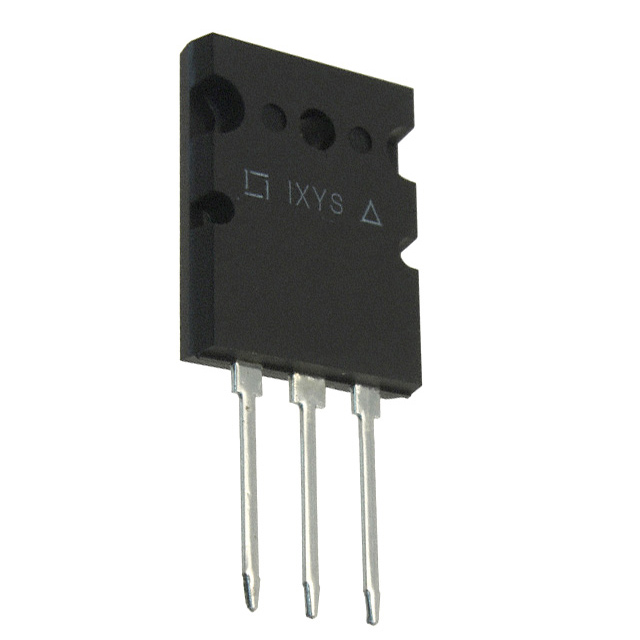

| Part number: | IXGK50N60B |
| Description: | IGBT 600V 75A 300W TO264 |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Bulk |
| Quantity | 25 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |
| Package / Case | TO-264-3, TO-264AA |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 50A |
| Supplier Device Package | TO-264 (IXGK) |
| Td (on/off) @ 25°C | 50ns/150ns |
| Switching Energy | 3mJ (off) |
| Test Condition | 480V, 50A, 2.7Ohm, 15V |
| Gate Charge | 160 nC |
| Current - Collector (Ic) (Max) | 75 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 200 A |
| Power - Max | 300 W |
|
