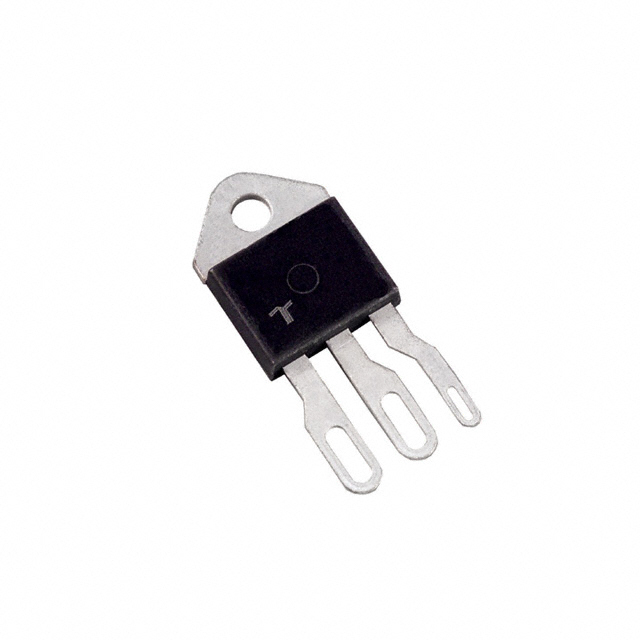

| Part number: | S4070WTP |
| Description: | SCR 400V 70A TO218X |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Tube |
| Quantity | 25 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Package / Case | TO-218X-3 |
| Mounting Type | Through Hole |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Current - Hold (Ih) (Max) | 80 mA |
| Current - Gate Trigger (Igt) (Max) | 50 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 800A, 950A |
| Current - On State (It (AV)) (Max) | 45 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Voltage - On State (Vtm) (Max) | 1.8 V |
| Current - Off State (Max) | 20 µA |
| Supplier Device Package | TO-218X |
| Current - On State (It (RMS)) (Max) | 70 A |
| Voltage - Off State | 400 V |
|
