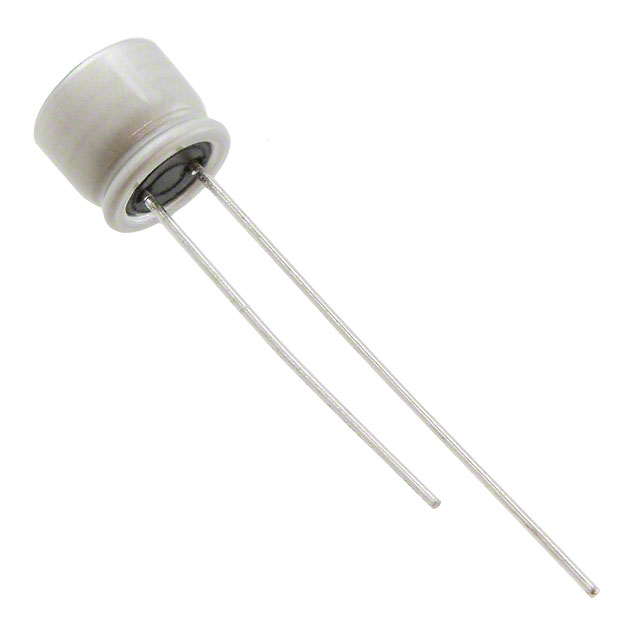

| Part number: | 32SEPF22M |
| Description: | CAP ALUM POLY 22UF 20% 32V T/H |
| Manufacturer | Panasonic Electronic Components |
| Encapsulation | Bulk |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Electronic Components" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Mounting Type | Through Hole |
| Type | Polymer |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.098" (2.50mm) |
| ESR (Equivalent Series Resistance) | 35mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Capacitance | 22 µF |
| Voltage - Rated | 32 V |
| Ripple Current @ Low Frequency | 120 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.4 A @ 100 kHz |
|
