| Part number: | 6SEPC560MW |

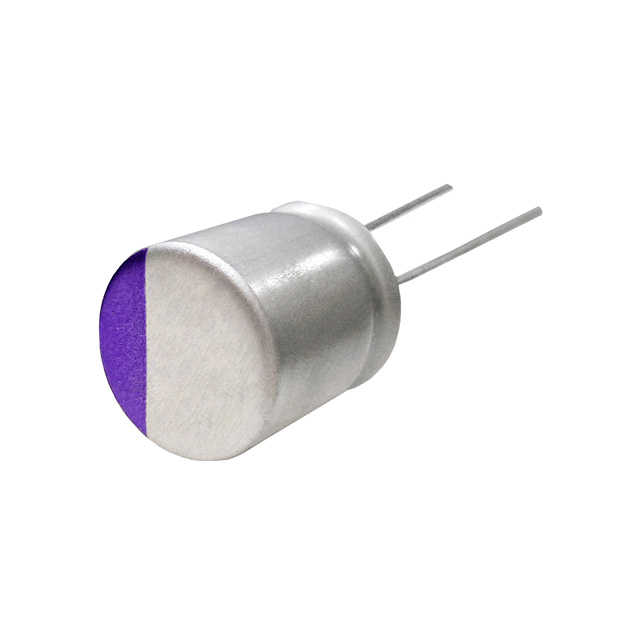

| Description: | CAP ALUM POLY 560UF 20% 6.3V T/H |
| Manufacturer | Panasonic Electronic Components |
| Encapsulation | Bulk |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Electronic Components" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Mounting Type | Through Hole |
| Type | Polymer |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| Lead Spacing | 0.098" (2.50mm) |
| ESR (Equivalent Series Resistance) | 7mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Capacitance | 560 µF |
| Voltage - Rated | 6.3 V |
| Ripple Current @ Low Frequency | 280 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5.6 A @ 100 kHz |
|
