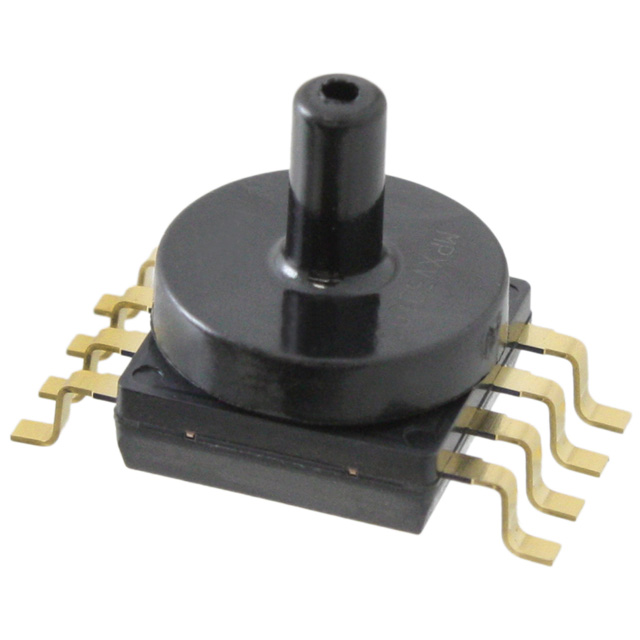

| Part number: | MPXA4250AC6U |
| Description: | SENSOR 36.26PSIA 0.13" 4.9V |
| Manufacturer | NXP Semiconductors |
| Encapsulation | Tube |
| Quantity | 40 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "NXP Semiconductors" |
| Features | Temperature Compensated |
| Package / Case | 8-SMD, Gull Wing, Top Port |
| Output Type | Analog Voltage |
| Mounting Type | Surface Mount |
| Output | 0.2 V ~ 4.9 V |
| Operating Pressure | 2.9PSI ~ 36.26PSI (20kPa ~ 250kPa) |
| Pressure Type | Absolute |
| Accuracy | ±1.5% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Gull Wing |
| Voltage - Supply | 4.85V ~ 5.35V |
| Port Size | Male - 0.13" (3.17mm) Tube |
| Applications | Board Mount |
| Port Style | Barbless |
| Maximum Pressure | 145.04PSI (1000kPa) |
|
