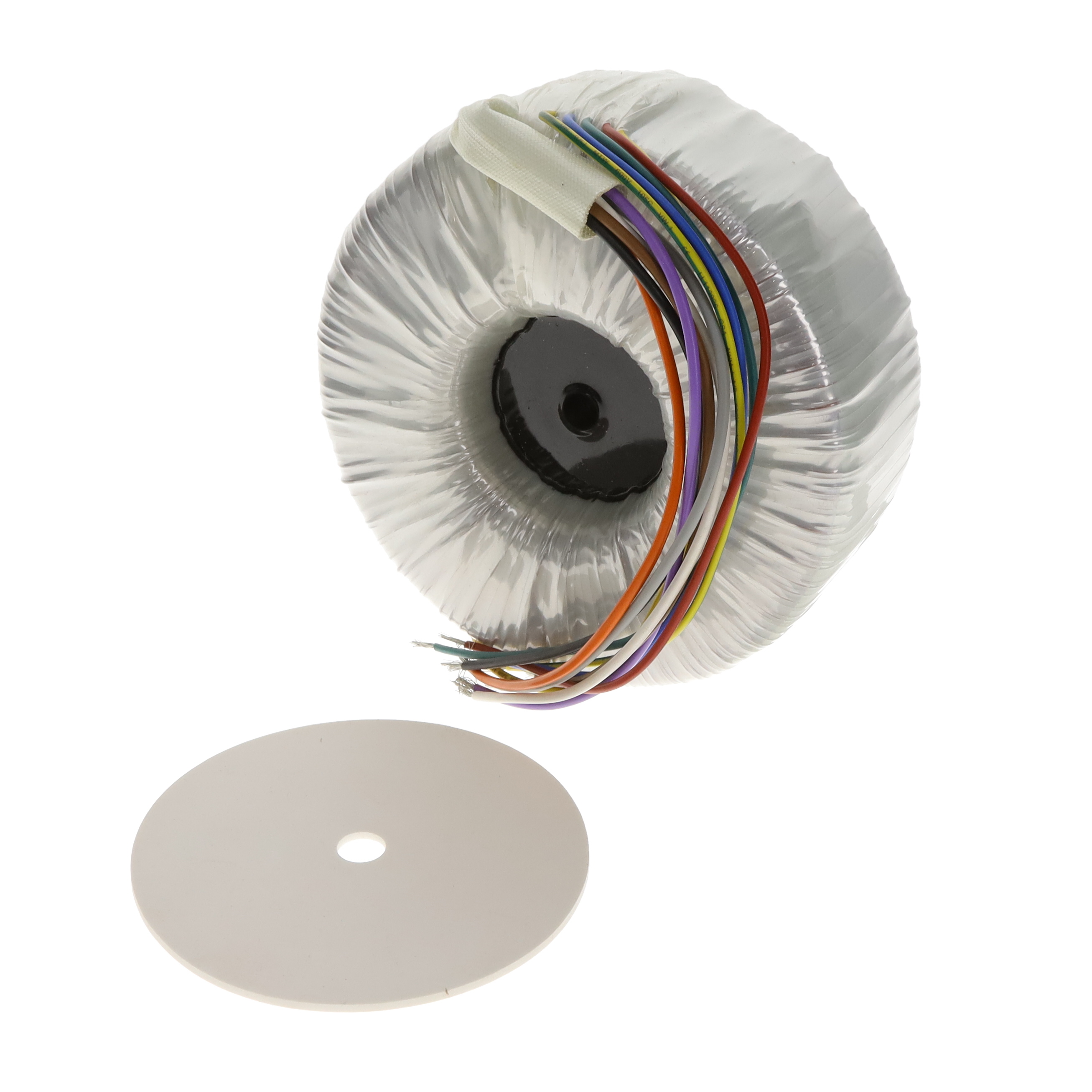

| Part number: | 1500MD-1-004 |
| Description: | PWR XFMR TOROIDAL 1500VA CHAS MT |
| Manufacturer | Talema |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Talema" |
| Size / Dimension | 200.00mm Dia x 90.00mm W |
| Mounting Type | Chassis Mount |
| Type | Toroidal |
| Weight | 26 lbs (11.8 kg) |
| Termination Style | Wire Leads |
| Primary Winding(s) | Dual, Multiple Taps |
| Secondary Winding(s) | Single, Multiple Taps |
| Power - Max | 1500VA |
| Voltage - Isolation | 5000Vrms |
| Current - Output (Max) | Parallel 12.5A, Series 6.25A |
| Voltage - Primary | 100V, 120V, 200V, 240V |
| Voltage - Secondary (Full Load) | Parallel 120V, Series 240V |
| Center Tap | No |
|
