| Part number: | 1092-0-05-15-00-00-01-0 |

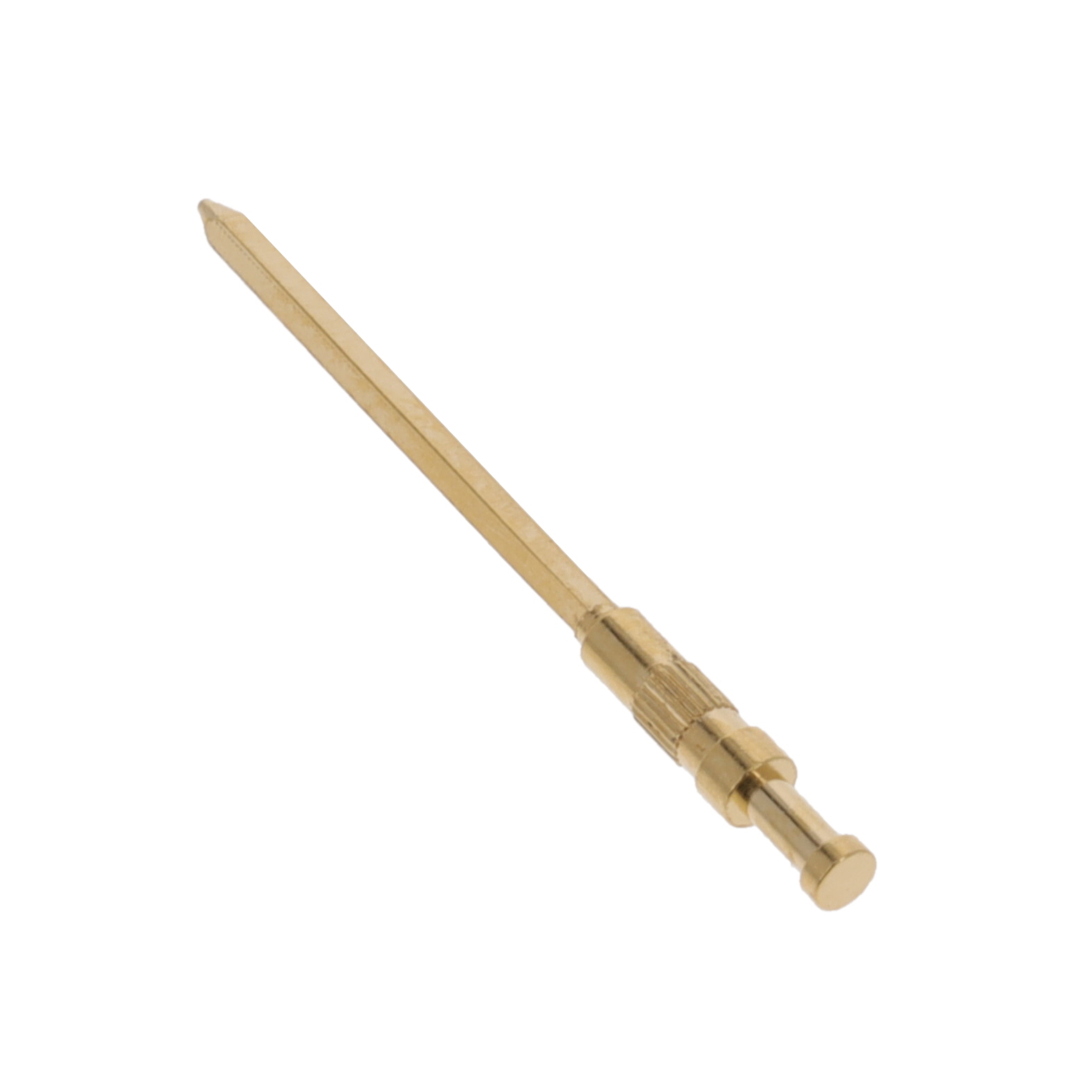

| Description: | TERM TURRET PIN L=3.43MM GOLD |
| Manufacturer | Mill-Max |
| Encapsulation | Bulk |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Mill-Max" |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Insulation | Non-Insulated |
| Terminal Type | Double End, Pin |
| Flange Diameter | 0.063" (1.60mm) |
| Length - Overall | 0.785" (19.94mm) |
| Termination | Press-Fit, Knurled, Wire Wrap |
| Length - Above Board | 0.135" (3.43mm) |
| Mounting Hole Diameter | 0.056" (1.42mm) |
| Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Material | Brass Alloy |
| Diameter - Turret Head | 0.053" (1.35mm) |
| Number of Turrets | Single |
| Length - Below Flange | 0.650" (16.51mm) |
|
