| Part number: | 1096-3-05-15-00-00-01-0 |

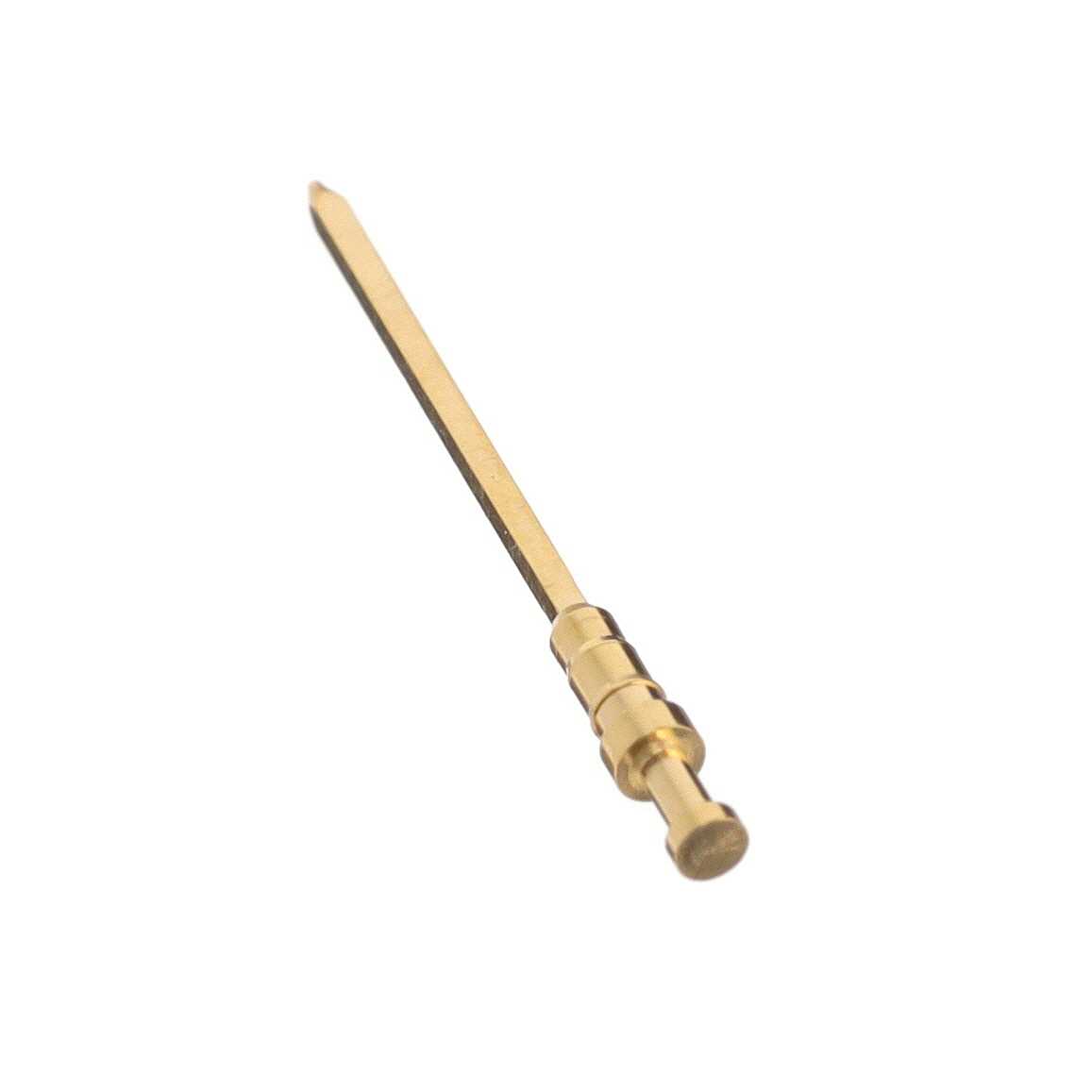

| Description: | TERM TURRET PIN L=3.33MM GOLD |
| Manufacturer | Mill-Max |
| Encapsulation | Bulk |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Mill-Max" |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Insulation | Non-Insulated |
| Terminal Type | Double End, Pin |
| Flange Diameter | 0.072" (1.83mm) |
| Length - Overall | 0.793" (20.14mm) |
| Termination | Press-Fit, Barbed, Wire Wrap |
| Length - Above Board | 0.131" (3.33mm) |
| Mounting Hole Diameter | 0.057" (1.45mm) |
| Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Material | Brass Alloy |
| Diameter - Turret Head | 0.058" (1.47mm) |
| Number of Turrets | Single |
| Length - Below Flange | 0.662" (16.81mm) |
|
