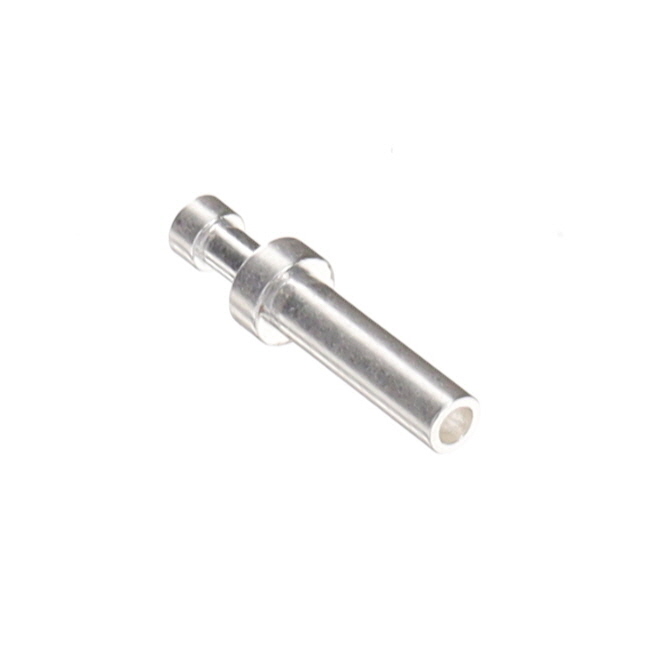

| Part number: | 2113-4-00-44-00-00-07-0 |
| Description: | TERM TURRET SINGLE L=2.39MM |
| Manufacturer | Mill-Max |
| Encapsulation | Bulk |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Mill-Max" |
| Contact Finish | Silver |
| Mounting Type | Through Hole |
| Insulation | Non-Insulated |
| Board Thickness | 0.125" (3.18mm) |
| Terminal Type | Single End |
| Flange Diameter | 0.062" (1.57mm) |
| Length - Overall | 0.241" (6.12mm) |
| Termination | Swage |
| Length - Above Board | 0.094" (2.39mm) |
| Mounting Hole Diameter | 0.043" (1.09mm) |
| Contact Finish Thickness | 300.0µin (7.62µm) |
| Contact Material | Brass Alloy |
| Diameter - Turret Head | 0.040" (1.02mm) |
| Number of Turrets | Single |
| Length - Below Flange | 0.147" (3.73mm) |
| Staking Side OD | 0.040" (1.02mm) |
| Staking Side ID | 0.026" (0.66mm) |
|
