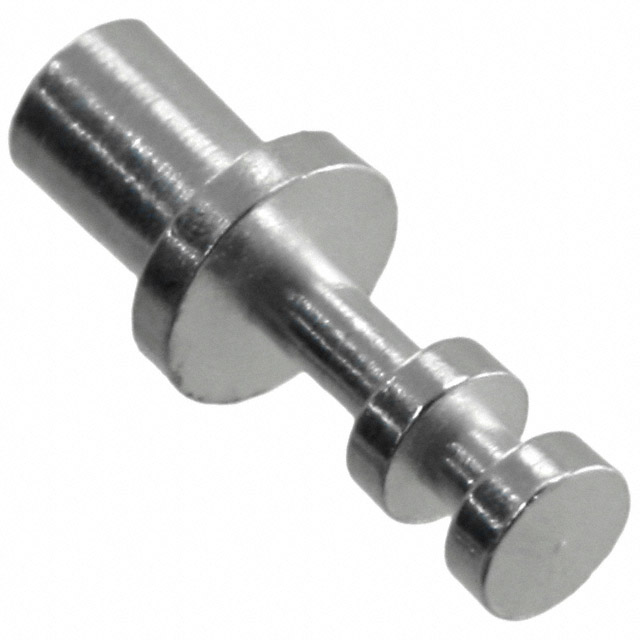

| Part number: | 2308-2-00-44-00-00-07-0 |
| Description: | TERM TURRET SINGLE L=3.96MM |
| Manufacturer | Mill-Max |
| Encapsulation | Bulk |
| Quantity | 5000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Mill-Max" |
| Contact Finish | Silver |
| Mounting Type | Through Hole |
| Insulation | Non-Insulated |
| Board Thickness | 0.062" (1.57mm) |
| Terminal Type | Single End |
| Flange Diameter | 0.094" (2.39mm) |
| Length - Overall | 0.240" (6.10mm) |
| Termination | Swage |
| Length - Above Board | 0.156" (3.96mm) |
| Mounting Hole Diameter | 0.064" (1.63mm) |
| Contact Finish Thickness | 300.0µin (7.62µm) |
| Contact Material | Brass Alloy |
| Diameter - Turret Head | 0.061" (1.55mm) |
| Number of Turrets | Double |
| Length - Below Flange | 0.084" (2.13mm) |
| Staking Side OD | 0.061" (1.55mm) |
| Staking Side ID | 0.044" (1.12mm) |
|
