| Part number: | 2313-1-00-01-00-00-07-0 |

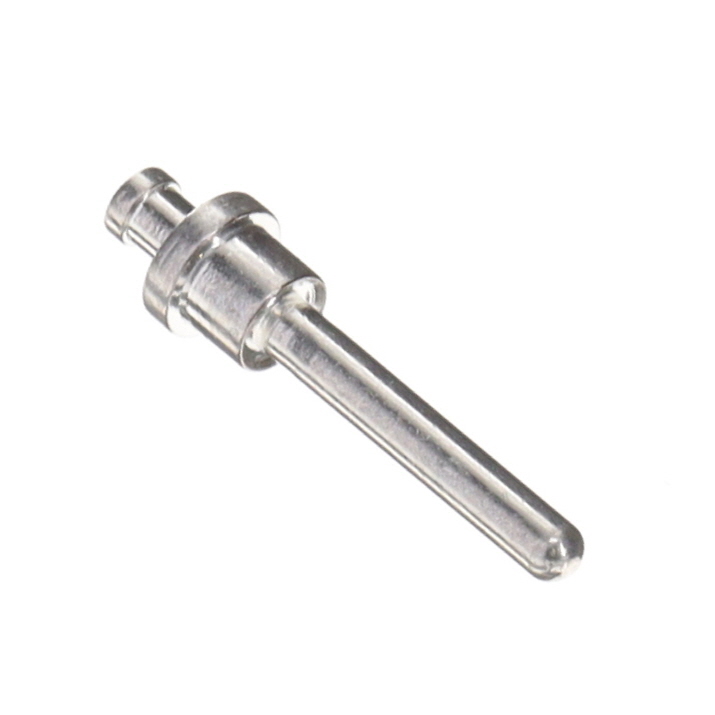

| Description: | TERM TURRET PIN L=1.98MM |
| Manufacturer | Mill-Max |
| Encapsulation | Bulk |
| Quantity | 1000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Mill-Max" |
| Contact Finish | Tin-Lead |
| Mounting Type | Through Hole |
| Insulation | Non-Insulated |
| Board Thickness | 0.031" (0.79mm) |
| Terminal Type | Double End, Pin |
| Flange Diameter | 0.094" (2.39mm) |
| Length - Overall | 0.379" (9.63mm) |
| Termination | Swage |
| Length - Above Board | 0.078" (1.98mm) |
| Mounting Hole Diameter | 0.076" (1.93mm) |
| Contact Finish Thickness | 200.0µin (5.08µm) |
| Contact Material | Brass Alloy |
| Diameter - Turret Head | 0.051" (1.30mm) |
| Number of Turrets | Single |
| Length - Below Flange | 0.301" (7.65mm) |
|
