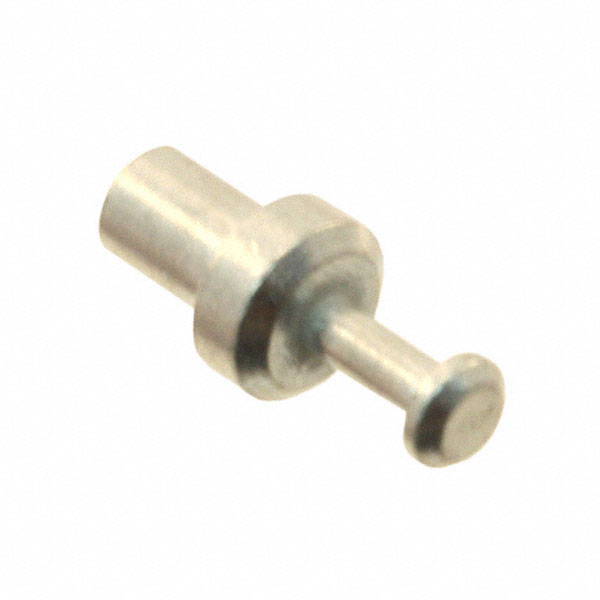

| Part number: | 2503-2-00-01-00-00-07-0 |
| Description: | TERM TURRET SINGLE L=4.75MM |
| Manufacturer | Mill-Max |
| Encapsulation | Bulk |
| Quantity | 1000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Mill-Max" |
| Contact Finish | Tin-Lead |
| Mounting Type | Through Hole |
| Insulation | Non-Insulated |
| Board Thickness | 0.062" (1.57mm) |
| Terminal Type | Single End |
| Flange Diameter | 0.125" (3.18mm) |
| Length - Overall | 0.296" (7.52mm) |
| Termination | Swage |
| Length - Above Board | 0.187" (4.75mm) |
| Mounting Hole Diameter | 0.082" (2.08mm) |
| Contact Finish Thickness | 200.0µin (5.08µm) |
| Contact Material | Brass Alloy |
| Diameter - Turret Head | 0.075" (1.91mm) |
| Number of Turrets | Single |
| Length - Below Flange | 0.109" (2.77mm) |
| Staking Side OD | 0.078" (1.98mm) |
| Staking Side ID | 0.055" (1.40mm) |
|
