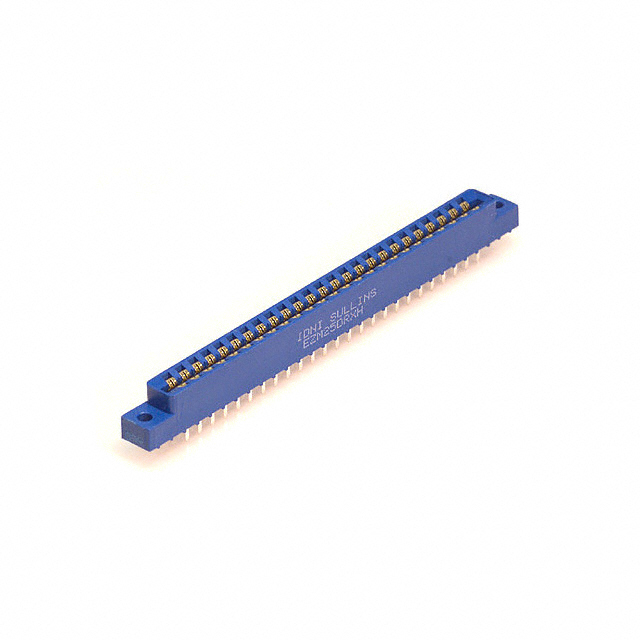

| Part number: | EZM25DRXH |
| Description: | CONN EDGE DUAL FMALE 50POS 0.156 |
| Manufacturer | Sullins Connector Solutions |
| Encapsulation | Tray |
| Quantity | 25 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sullins Connector Solutions" |
| Gender | Female |
| Contact Finish | Gold |
| Color | Blue |
| Mounting Type | Through Hole |
| Number of Positions | 50 |
| Pitch | 0.156" (3.96mm) |
| Operating Temperature | -65°C ~ 125°C |
| Read Out | Dual |
| Contact Type | Full Bellows |
| Card Type | Non Specified - Dual Edge |
| Card Thickness | 0.062" (1.57mm) |
| Flange Feature | Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia |
| Termination | Solder |
| Contact Finish Thickness | 10.0µin (0.25µm) |
| Material - Insulation | Polybutylene Terephthalate (PBT) |
| Contact Material | Phosphor Bronze |
| Number of Positions/Bay/Row | 25 |
| Number of Rows | 2 |
|
