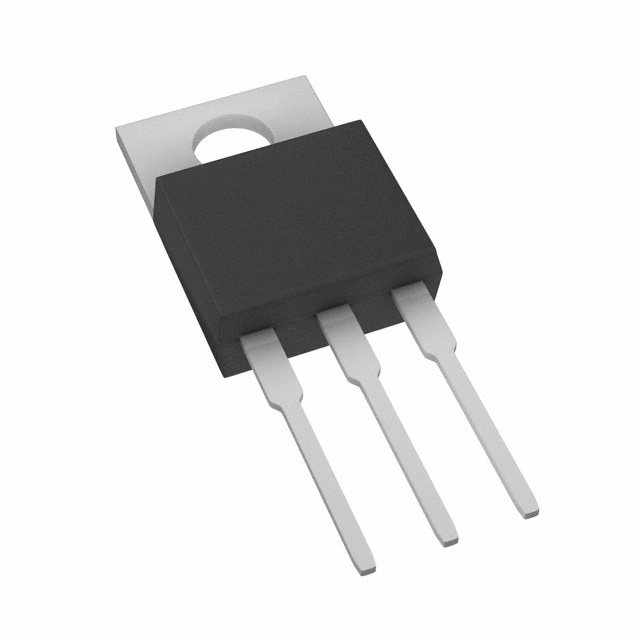

| Part number: | 10TTS08 |
| Description: | SCR 800V 10A TO220AB |
| Manufacturer | Vishay General Semiconductor – Diodes Division |
| Encapsulation | Tube |
| Quantity | 1000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Vishay General Semiconductor – Diodes Division" |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Current - Hold (Ih) (Max) | 30 mA |
| Current - Gate Trigger (Igt) (Max) | 15 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 140A @ 50Hz |
| Current - On State (It (AV)) (Max) | 6.5 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1 V |
| Voltage - On State (Vtm) (Max) | 1.15 V |
| Current - Off State (Max) | 50 µA |
| Supplier Device Package | TO-220-3 |
| Current - On State (It (RMS)) (Max) | 10 A |
| Voltage - Off State | 800 V |
|
