| Part number: | 3041626 |

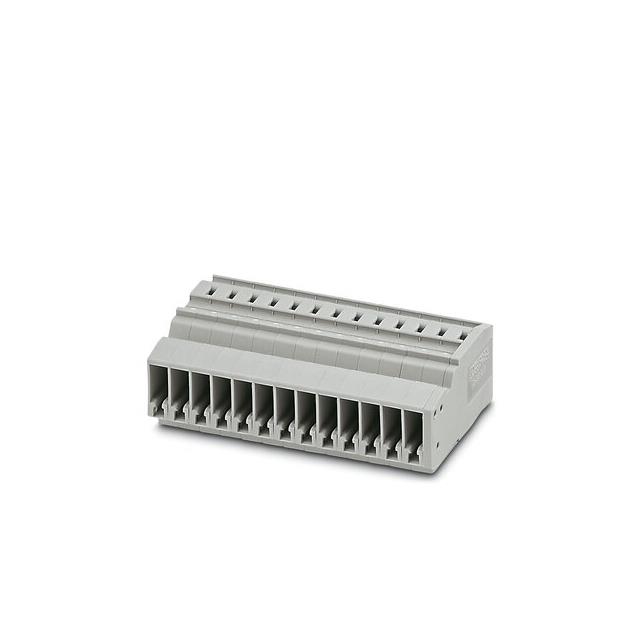

| Description: | TERM BLK RCPT 13POS 5.2MM GRAY |
| Manufacturer | Phoenix Contact |
| Encapsulation | Bulk |
| Quantity | 10 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Phoenix Contact" |
| Features | Coupling, Engagement Pin |
| Mounting Type | Panel Mount |
| Length | 2.661" (67.59mm) |
| Type | Receptacle, Male Pins |
| Termination Style | Spring Cage |
| Material - Insulation | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Terminal - Width | 5.2mm |
| Wire Gauge or Range - AWG | 12-26 AWG |
| Wire Gauge or Range - mm² | 0.08-4mm² |
| Height (Max) | 0.858" (21.79mm) |
| Housing Color | Gray |
| Stripping Length | 10mm |
| Current - UL | 20 A |
| Current - IEC | 24 A |
| Voltage - IEC | 500 V |
| Voltage - UL | 300 V |
| Number of Positions | 13 |
|
