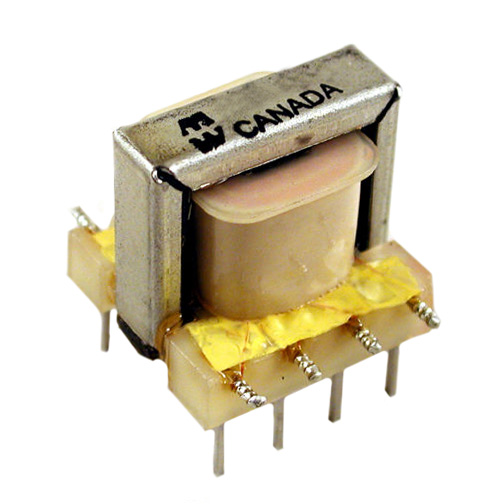

| Part number: | 148M |
| Description: | AUDIO XFMR 6K / 2K 500/500 TH |
| Manufacturer | Hammond Manufacturing |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Hammond Manufacturing" |
| Size / Dimension | 0.820" L x 0.680" W (20.83mm x 17.27mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Transformer Type | Economical Open Type |
| Insertion Loss | 0.5dB |
| Frequency Range | 200Hz ~ 15kHz |
| Height - Seated (Max) | 0.690" (17.53mm) |
| Impedance - Primary (Ohms) | 6k |
| Impedance - Secondary (Ohms) | 2k, 500/500 |
| DC Resistance (DCR) - Primary | 850Ohm |
| DC Resistance (DCR) - Secondary | 230Ohm |
| Frequency Response | ±1dB |
| Power Level | 75mW |
|
