| Part number: | 812 |

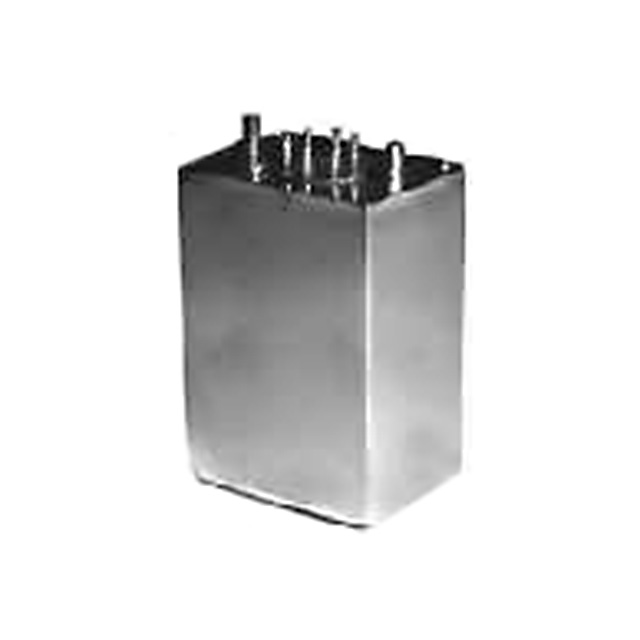

| Description: | XFMR 500 125/125 / 40K 10K/10K |
| Manufacturer | Hammond Manufacturing |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Hammond Manufacturing" |
| Size / Dimension | 1.752" L x 1.252" W (44.50mm x 31.80mm) |
| Mounting Type | Chassis Mount |
| Termination Style | Solder Lug |
| Transformer Type | Broadcast Quality |
| Insertion Loss | 1dB |
| Frequency Range | 50Hz ~ 15kHz |
| Voltage - Isolation | 750V |
| Height - Seated (Max) | 2.559" (65.00mm) |
| Impedance - Primary (Ohms) | 500, 125/125 |
| Impedance - Secondary (Ohms) | 40k, 10k/10k |
| DC Resistance (DCR) - Primary | 3.11Ohm |
| DC Resistance (DCR) - Secondary | 1.432kOhm |
| Frequency Response | ±0.5dB |
| Power Level | 15dB |
|
