| Part number: | PT550F |

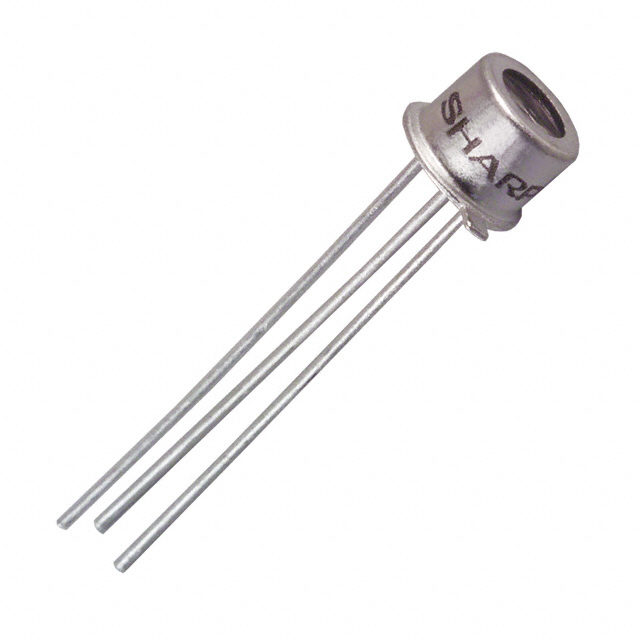

| Description: | SENSOR PHOTO 800NM TOP TO206AA |
| Manufacturer | Sharp Microelectronics |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sharp Microelectronics" |
| Package / Case | TO-206AA, TO-18-3 Metal Can |
| Wavelength | 800nm |
| Mounting Type | Through Hole |
| Orientation | Top View |
| Operating Temperature | -25°C ~ 125°C |
| Viewing Angle | 100° |
| Current - Dark (Id) (Max) | 1 µA |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 35 V |
| Power - Max | 150 mW |
|
