| Part number: | NR-23160-000 |

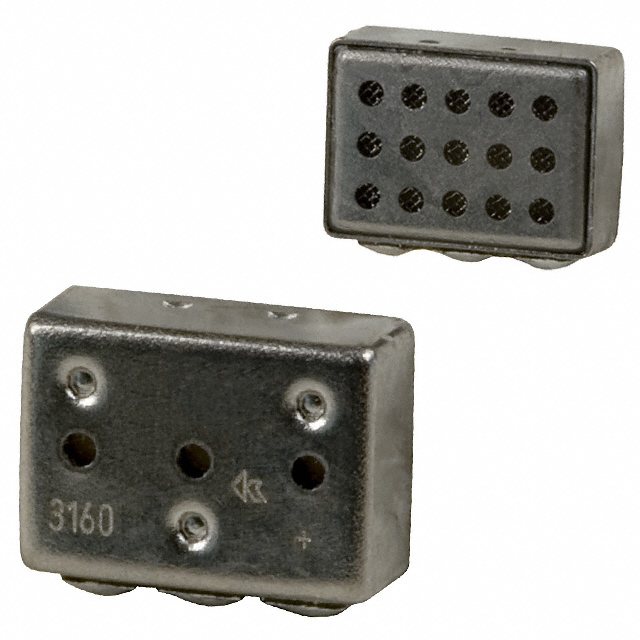

| Description: | MIC COND ANALOG NC -52DB |
| Manufacturer | Knowles |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Knowles" |
| Output Type | Analog |
| Size / Dimension | 0.219" L x 0.157" W (5.56mm x 3.99mm) |
| Sensitivity | -52dB ±3dB @ 74dB SPL |
| Shape | Rectangular |
| Type | Electret Condenser |
| Termination | Solder Pads |
| Direction | Noise Cancelling |
| Port Location | Top |
| Height (Max) | 0.089" (2.26mm) |
| Voltage - Rated | 1.3 V |
| Impedance | 2.5 kOhms |
| Current - Supply | 200 µA |
| Voltage Range | 1.3 V ~ 10 V |
| Frequency Range | 100 Hz ~ 4 kHz |
|
