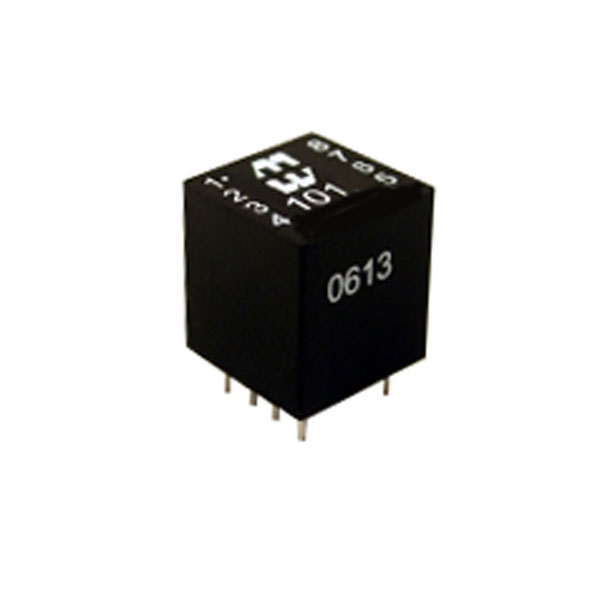

| Part number: | 101H |
| Description: | AUDIO XFMR 1.2KCT / 600CT TH |
| Manufacturer | Hammond Manufacturing |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Hammond Manufacturing" |
| Size / Dimension | 0.450" L x 0.450" W (11.43mm x 11.43mm) |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Transformer Type | Miniature Epoxy Potted |
| Frequency Range | 200Hz ~ 100kHz |
| Height - Seated (Max) | 0.480" (12.19mm) |
| Impedance - Primary (Ohms) | 1.2kCT |
| Impedance - Secondary (Ohms) | 600CT |
| DC Resistance (DCR) - Primary | 80Ohm |
| DC Resistance (DCR) - Secondary | 53Ohm |
| Frequency Response | ±0.5dB |
| Power Level | 100mW |
|
