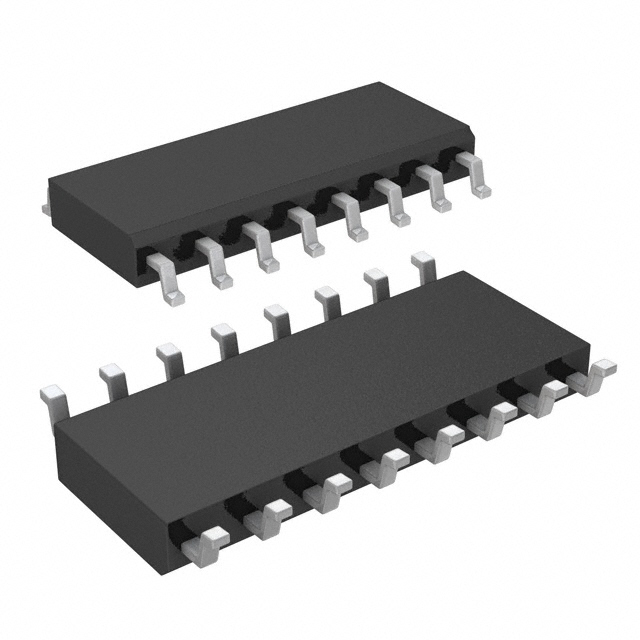

| Part number: | DG309DY |
| Description: | IC SW SPST-NCX4 100OHM 16SOIC |
| Manufacturer | Maxim Integrated / Analog Devices |
| Encapsulation | Tube |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Maxim Integrated / Analog Devices" |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 100Ohm |
| Supplier Device Package | 16-SOIC |
| Voltage - Supply, Single (V+) | 5V ~ 30V |
| Voltage - Supply, Dual (V±) | ±5V ~ 20V |
| Charge Injection | -10pC |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Switch Time (Ton, Toff) (Max) | 250ns, 150ns |
| Channel Capacitance (CS(off), CD(off)) | 11pF, 8pF |
| Current - Leakage (IS(off)) (Max) | 5nA |
| Number of Circuits | 4 |
|
