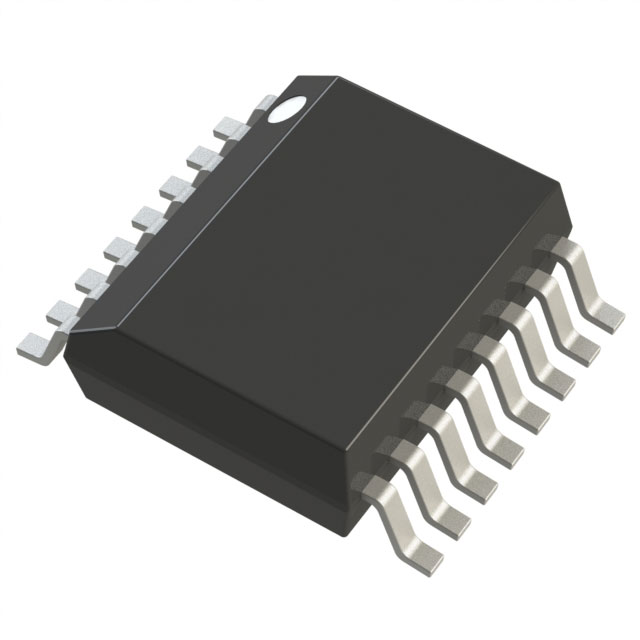

| Part number: | MAX4519EEE |
| Description: | IC SW DPST-NOX2 100OHM 16QSOP |
| Manufacturer | Maxim Integrated / Analog Devices |
| Encapsulation | Tube |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Maxim Integrated / Analog Devices" |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 100Ohm |
| Supplier Device Package | 16-QSOP |
| Voltage - Supply, Single (V+) | 2V ~ 15V |
| Voltage - Supply, Dual (V±) | ±2.7V ~ 8V |
| Charge Injection | 5pC (Max) |
| Crosstalk | -92dB @ 100kHz |
| Switch Circuit | DPST - NO |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ΔRon) | 4Ohm (Max) |
| Switch Time (Ton, Toff) (Max) | 150ns, 150ns |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 10pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Number of Circuits | 2 |
|
