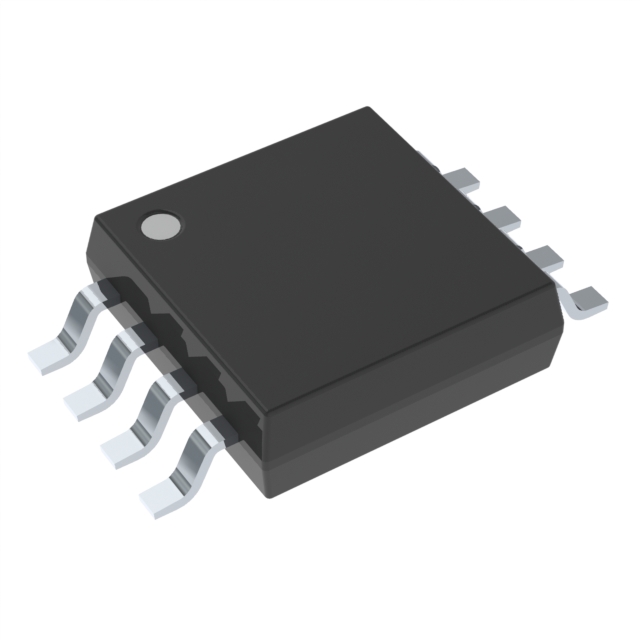

| Part number: | MAX4543EUA |
| Description: | IC SW SPST-NO/NCX2 60OHM 8UMAX |
| Manufacturer | Linear Technology (Analog Devices, Inc.) |
| Encapsulation | Tube |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Linear Technology (Analog Devices, Inc.)" |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 60Ohm |
| Supplier Device Package | 8-uMAX/uSOP |
| Voltage - Supply, Single (V+) | 2.7V ~ 12V |
| Charge Injection | 1pC |
| Crosstalk | -90dB @ 1MHz |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ΔRon) | 800mOhm |
| Switch Time (Ton, Toff) (Max) | 100ns, 75ns |
| Channel Capacitance (CS(off), CD(off)) | 8pF, 8pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Number of Circuits | 2 |
|
