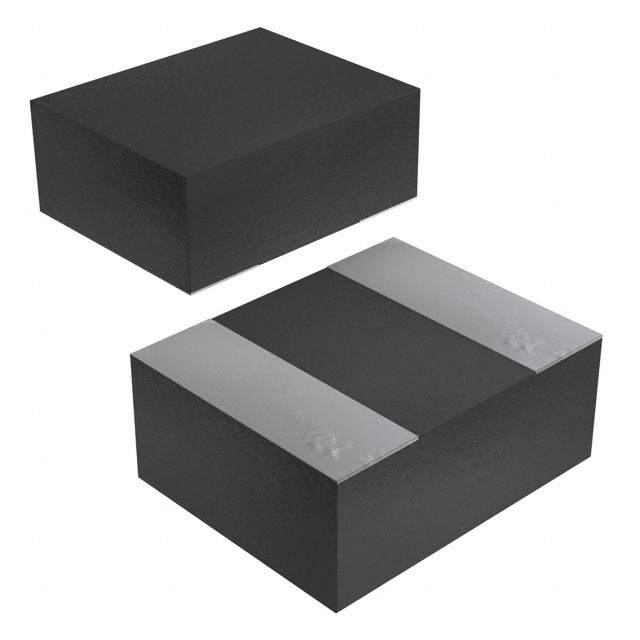

| Part number: | TYS252010L4R7M-10 |
| Description: | FIXED IND 4.7UH 700MA 563MOHM SM |
| Manufacturer | Laird-Signal Integrity Products |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Laird-Signal Integrity Products" |
| Tolerance | ±20% |
| Package / Case | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 563mOhm Max |
| Frequency - Self Resonant | 40MHz |
| Current - Saturation (Isat) | 950mA |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | 1008 (2520 Metric) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Inductance | 4.7 µH |
| Current Rating (Amps) | 700 mA |
|
