| Part number: | TYS30106R8M-10 |

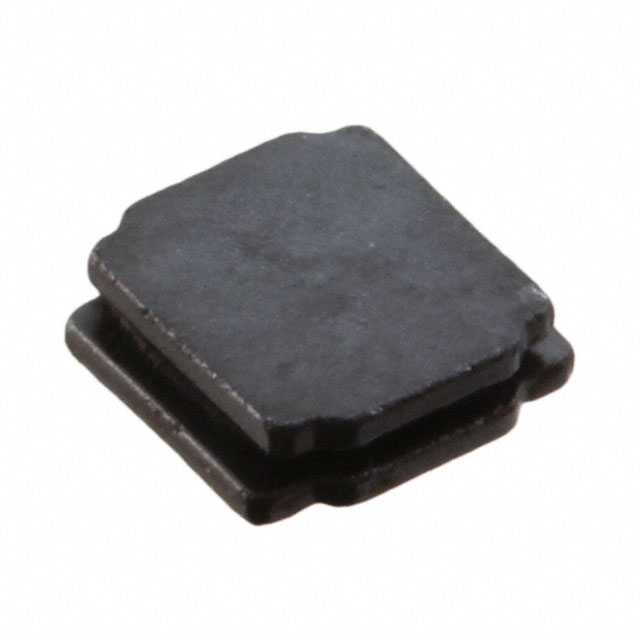

| Description: | FIXED IND 6.8UH 660MA 305MOHM SM |
| Manufacturer | Laird-Signal Integrity Products |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Laird-Signal Integrity Products" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 305mOhm Max |
| Frequency - Self Resonant | 42MHz |
| Current - Saturation (Isat) | 550mA |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Inductance | 6.8 µH |
| Current Rating (Amps) | 660 mA |
|
