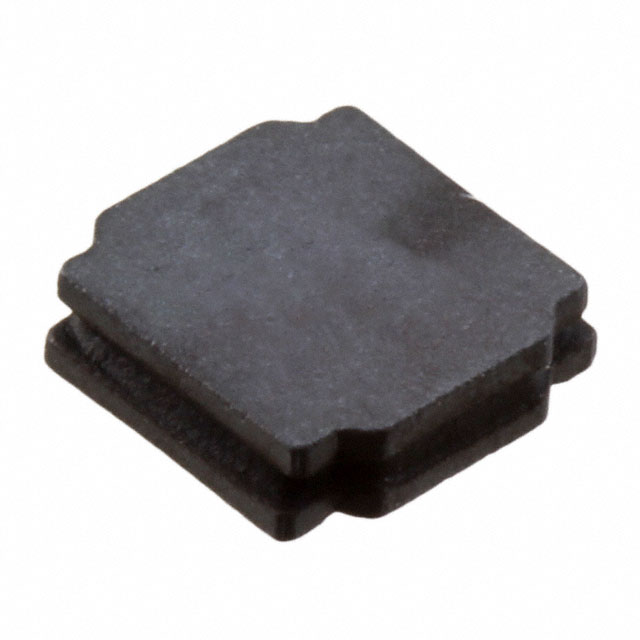

| Part number: | TYS40124R7N-10 |
| Description: | FIXED IND 4.7UH 1.05A 125MOHM SM |
| Manufacturer | Laird-Signal Integrity Products |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 4500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Laird-Signal Integrity Products" |
| Tolerance | ±30% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 125mOhm Max |
| Frequency - Self Resonant | 50MHz |
| Current - Saturation (Isat) | 1.15A |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Inductance | 4.7 µH |
| Current Rating (Amps) | 1.05 A |
|
