| Part number: | TYS60201R0N-10 |

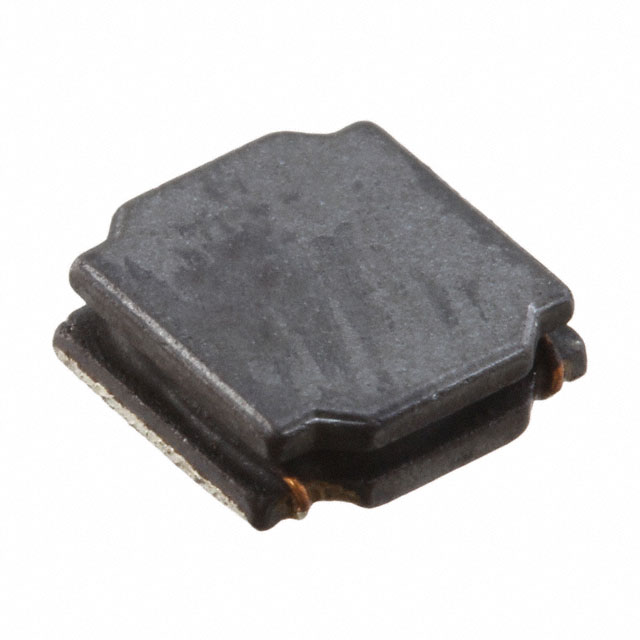

| Description: | FIXED IND 1UH 3.5A 20 MOHM SMD |
| Manufacturer | Laird-Signal Integrity Products |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Laird-Signal Integrity Products" |
| Tolerance | ±30% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 20mOhm Max |
| Frequency - Self Resonant | 100MHz |
| Current - Saturation (Isat) | 4.15A |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.087" (2.20mm) |
| Inductance | 1 µH |
| Current Rating (Amps) | 3.5 A |
|
