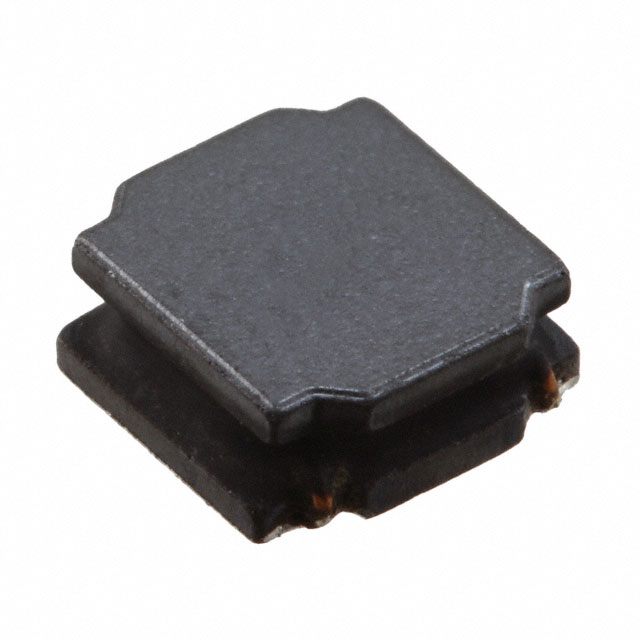

| Part number: | TYS60281R0N-10 |
| Description: | FIXED IND 1UH 5.2A 10 MOHM SMD |
| Manufacturer | Laird-Signal Integrity Products |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Laird-Signal Integrity Products" |
| Tolerance | ±30% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 10mOhm |
| Frequency - Self Resonant | 70MHz |
| Current - Saturation (Isat) | 5.75A |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Inductance | 1 µH |
| Current Rating (Amps) | 5.2 A |
|
