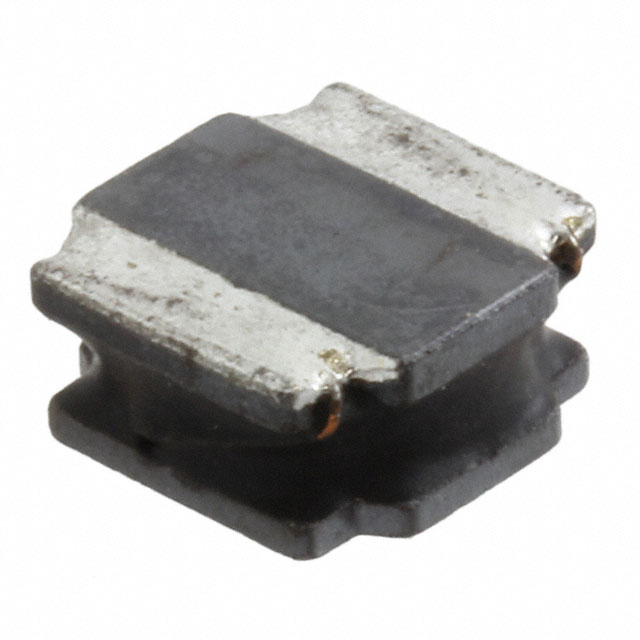

Part number: | TYS8040220M-10 |
Description: | FIXED IND 22UH 2.1A 69 MOHM SMD |
Manufacturer | Laird-Signal Integrity Products |
Encapsulation | Tape & Reel (TR) |
Quantity | 1000 |
RoHS | 1 |
TYPE | DESCRIPTION |
Mfr | "Laird-Signal Integrity Products" |
Tolerance | ±20% |
Package / Case | Nonstandard |
Size / Dimension | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
Mounting Type | Surface Mount |
Shielding | Shielded |
Operating Temperature | -40°C ~ 125°C |
DC Resistance (DCR) | 69mOhm Max |
Frequency - Self Resonant | 9.5MHz |
Current - Saturation (Isat) | 2.4A |
Material - Core | Ferrite |
Inductance Frequency - Test | 100 kHz |
Height - Seated (Max) | 0.165" (4.20mm) |
Inductance | 22 µH |
Current Rating (Amps) | 2.1 A |
